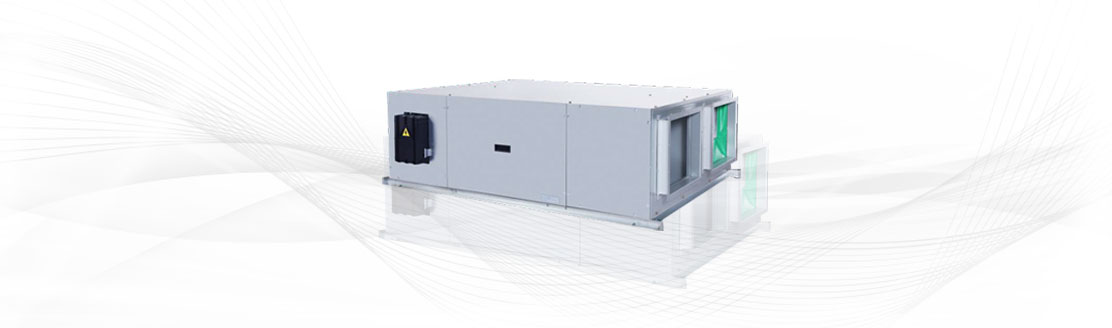

Commercial TGP Series

Consumers Tell You The Secret

High Cost-Effective

Complete Function

Big Brand

High Quality

100% Brand Guarantee

Devoted to the indoor air processing 14 years

Manfacturer Reputation Guarantee

Life-Long Services

Standard Features:

This is one of the most valuable products

Energy saving air exchange: Effectively recover the heat energy, which lost by air exchange (fresh air load) ,which can save the cost of air conditioning.
Save equipment: because it can reduce the fresh air load greatly, part of the heat energy can be recovered, the air conditioning equipment can be appropriately miniaturized.
Humidity regulating function: during refrigeration, remove the external air which with high humidity and supply air as close to the indoor humidity. During heating, convert dry outdoor air into indoor humidity, and supply air as close to the indoor humidity.
Comfortable air exchange: indoor temperature changes in little during air exchange. Due to simultaneous air exhaust and air supply, air exchange also can be stable in a highly sealed room.
Sound insulation effect: Body air duct and heat exchange core have sound insulation effect, can prevent outdoor noise into the indoor, or prevent indoor noise to the outdoor, do not damage the office and other public places environment.
Regarding Air exchange method:

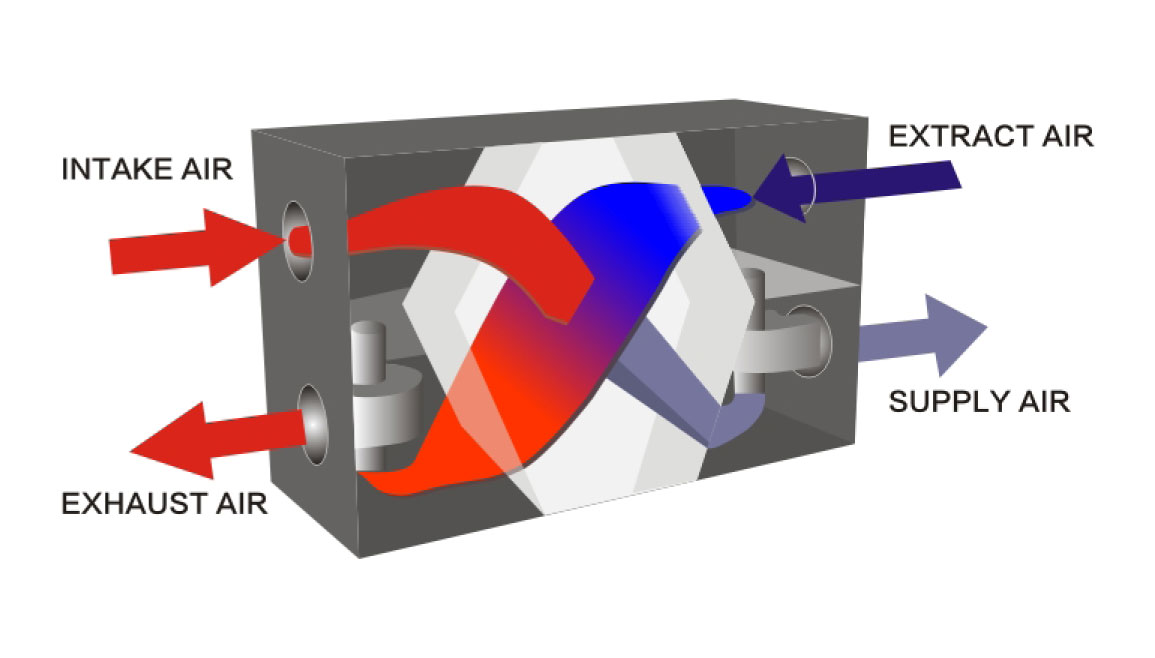

Energy recovery and ventilation: heat exchange for outdoor air and indoor air to get close to the temperature and humidity of indoor air and then supply air to the room.

Model	A	B	E	F	G	I	K	S	S1	S2	U	U1	U2	ΦN
AHE-D150TGP	1250	1200	1300	1170	520	600	338	320	345	370	400	425	450	12
AHE-D200TGP	1300	1200	1350	1170	520	600	300	320	345	370	400	425	450	12
AHE-D300TGP	1660	1500	1710	1470	650	750	405	350	375	400	500	525	550	12

Performance Parameter :

Specifications	Unit	AHE D150 TGP L/M/H	AHE D200 TGP L/M/H	AHE D300 TGP L/M/H
Airflow	(m3/h)	1000/1300/1500	1200/2000/2000	2500/3000/3000
External Pressure	(Pa)	84/135/165	110/132/176	150/180/210
Enth. Cooling	(%)	69/66/66	65/62/62	63/60/60
Enth. Heating	(%)	74/70/70	73/71/71	73/69/69
Temp. Eff	(%)	74/71/71	74/71/71	73/70/70
Noise	db(A)	46/49/51	49/51/53	51/54/57
Voltage	(V/Hz)	220-50	220-50	220/50
Current	(A)	2.3/3.6/3.8	3.0/4.6/4.8	6.5/8.7/9.0
Input Power	(W)	490/740/790	650/980/1020	1400/1870/1950
Weight	(Kg.)	110	112	142

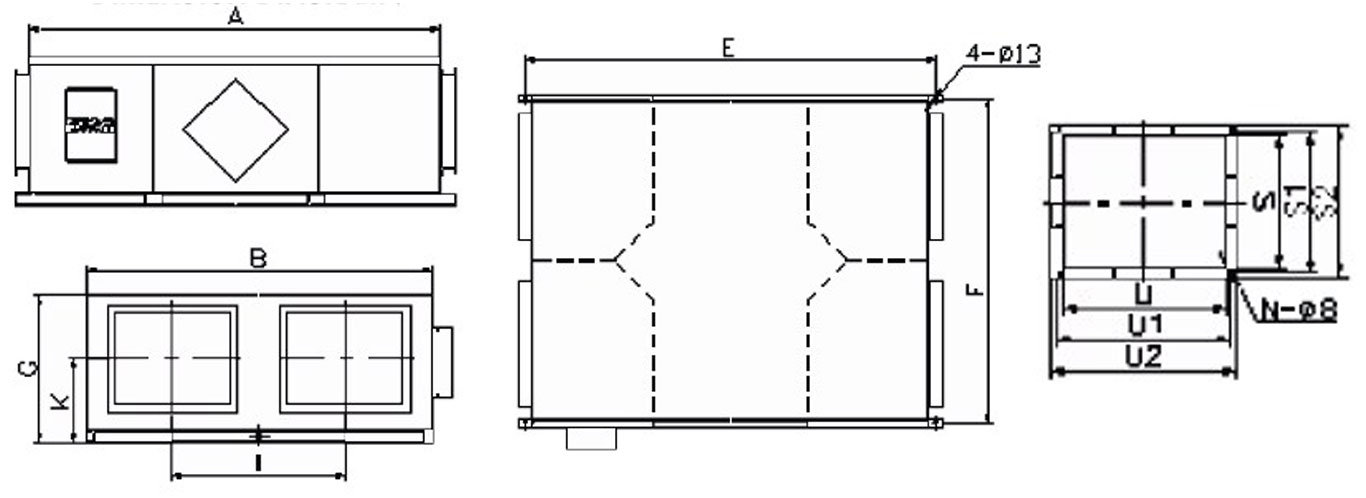

Dimension Diagram

Outdoor Haze Air is not safe, neither indoor

We provide solution for HEALTHY INDOOR, HEALTHY LIFE

Common Ventilation Issues for

Homes and Light Commercial Buildings

The HRV unit brings a continuous supply of fresh air into a home while exhausting an equal amount of contaminated air. During winter, fresh incoming air is tempered by the heat that is transferred from the outgoing air so you save on energy costs, while during summer, the incoming air is pre-cooled if the house is equipped with an air cooling system.

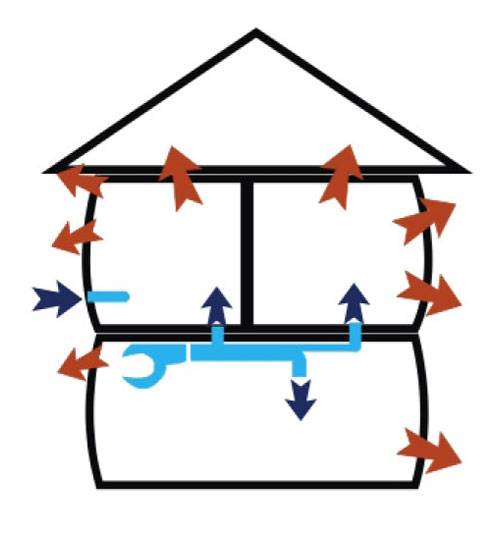

Supply Only Fan Application

Postive Air Pressure

Forces hot and/or humid air into walls and insulation.

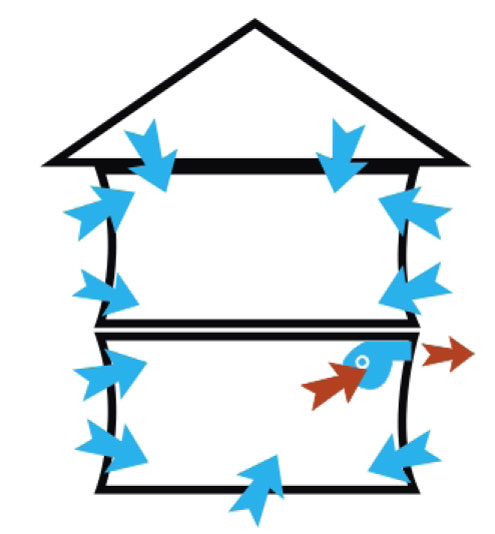

Exhaust Only Fan Application

Negative Air Pressure

The unfiltered air increases risks of mold and causes energy costs to be higher.

Energy saving principle

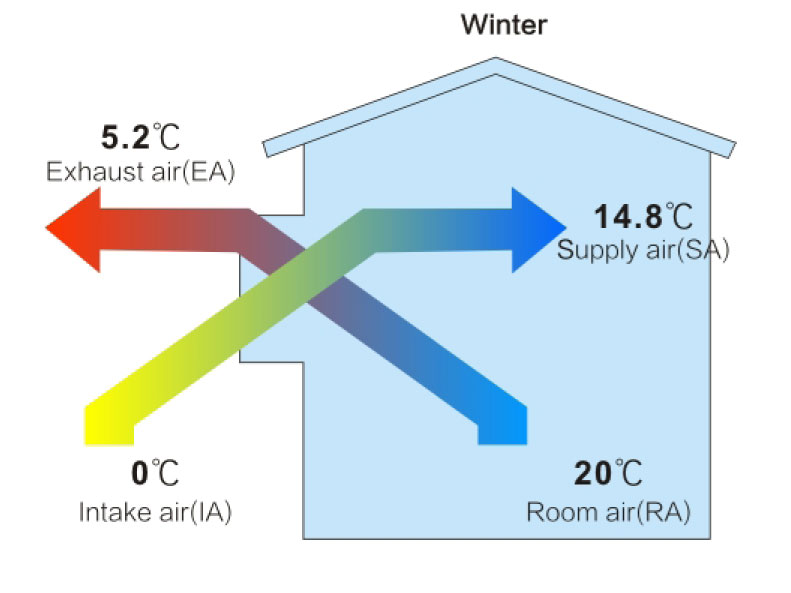

Heat recovery calculating equation
SA temp. = (RA temp. -IA temp.) Xtemp. recovery efficiency + OA temp. Example: 14.8°C = (20°C-0°C) x 74% + 0°C

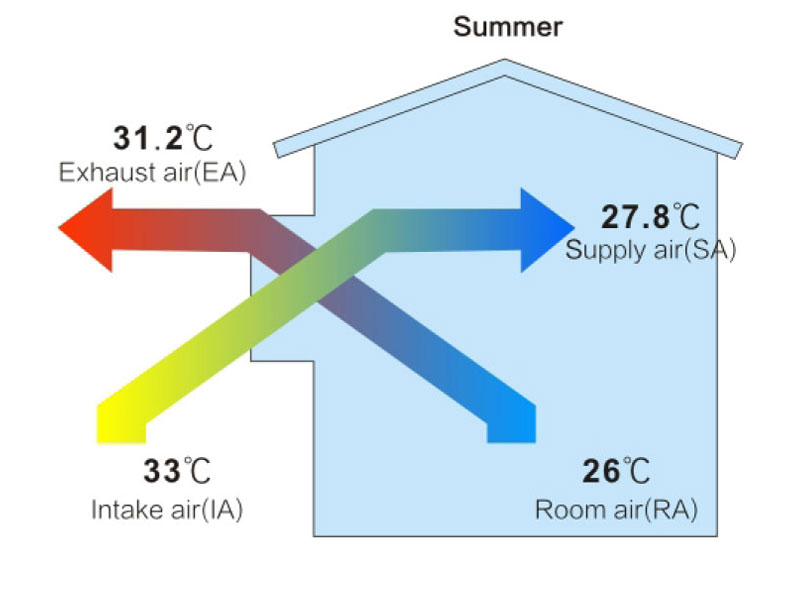

Heat recovery calculating equation
SA temp. = IA tmep.-(IA temp. -RA temp.) Xtemp. recovery efficiency Example: 27.8t = 33°C-(33°C-26°C) x 74%

Why You'll Love owning our Heat Recovery Ventilator

Indoor air is fresh, comfortable and healthy
Allergy & asthma triggers are removed
Room-to-room climates are more consistent
Dust less often
Helps control pet odors
You' II feel better - even sleep better
Your home will be safer from mold and mildew
Pet and cooking odors are cleared quickly
Maintenance is easy - system even alerts when it' s time for a filter change
The service life of your HVAC system is extended
Quiet operation
Best product support available
