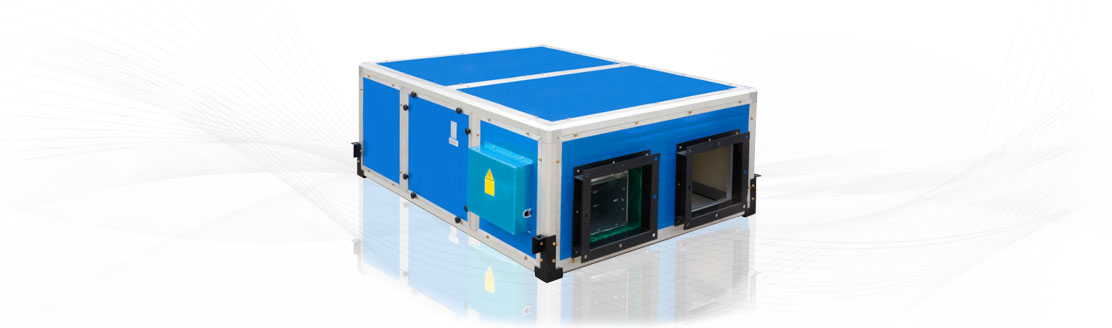

COMMERCIAL THB SERIES

Consumers Tell You The Secret

High Cost-Effective

Complete Function

Big Brand

High Quality

100% Brand Guarantee

Devoted to the indoor air processing 14 years

Manfacturer Reputation Guarantee

Life-Long Services

Standard Features:

This is most valuable products

Airflow more than 1500m³/h.High technology Counterflow Nano-film heat exchanger core that the efficiency of energy recovery more than crossflow
Heat exchanger core more than 10 years warranty
External rotor motor, equiped with automatic reset thermal overload protection
Double way air filtration to bring fresh air and improve air quality
Integrated balancing damper and balancing port
Easy access service door
LCD controller
Filter:Includes washable primary filter, activated carbon filter and HEPA high efficient filter.
Optional Function:
DC motor, Alumininum core, Defrost cycle etc

Dimension Table (mm)

Model	A	B	C	E	F	G	H	K	LxR
AHE-150THB	1400	940	430	1360	980	1020	558	1500	230 x 210
AHE-200THB	1480	1080	470	1440	1120	1160	558	1580	260 x 230
AHE-250THB	1520	1180	520	1480	1220	1260	558	1620	300 x 260
AHE-300THB	1680	1280	570	1640	1320	1360	558	1780	330 x 300
AHE-400THB	1680	1480	670	1640	1520	1560	558	1780	360 x 310
AHE-500THB	2000	1680	770	1940	1720	1760	838	2100	375 x 375
AHE-600THB	2000	1940	900	1940	1980	2020	838	2100	500 x 400

Performance Parameter

Model	Unit	AHE-150THB	AHE-200THB	AHE-250THB	AHE-300THB	AHE-400THB	AHE-500THB	AHE-600THB
Voltage	(V/HZ)	220/50/60	220/50/60	220/50/60	220/50/60	380/50/60	380/50/60	380/50/60
Airflow	(m³/h)	1500/1360/1210	2000/1830/1660	2500/2360/2180	3000/2820/2650	4000	5000	6000
Static Pressure	(Pa)	185	210	260	280	300	330	350
Enthalpy Exchange Efficiency	(%)	67/68/69	66/68/70	66/68/70	66/68/70	68	68	68
Rated Power	(W)	580/500/400	880/750/650	1200/1080/820	1500/1320/1120	2000	2200	3000
Noise	(dB(A))	52/50/46	54/51/49	56/53/51	60/56/52	62	64	64
Weight	(Kg)	90	110	180	252	270	290	290
Diameter of vent	(mm)	230 x 210	260 x 230	300 x 260	330 x 300	360 x 310	375 x 375	500 x 400
Machine Size	(mm)	1500x1020x558	1580x1160x558	1620x1260x558	1780x1360x558	1780x1560x558	2100x1760x838	2100x2020x838

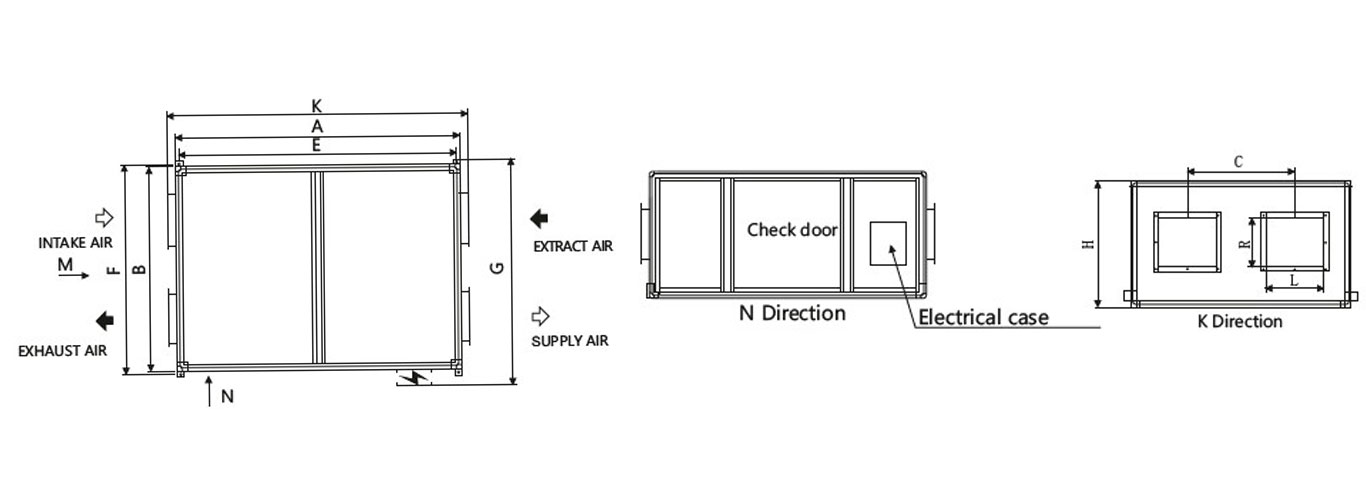

Dimension Diagram

Outdoor Haze Air is not safe, neither indoor

We provide solution for HEALTHY INDOOR, HEALTHY LIFE

Common Ventilation Issues for

Homes and Light Commercial Buildings

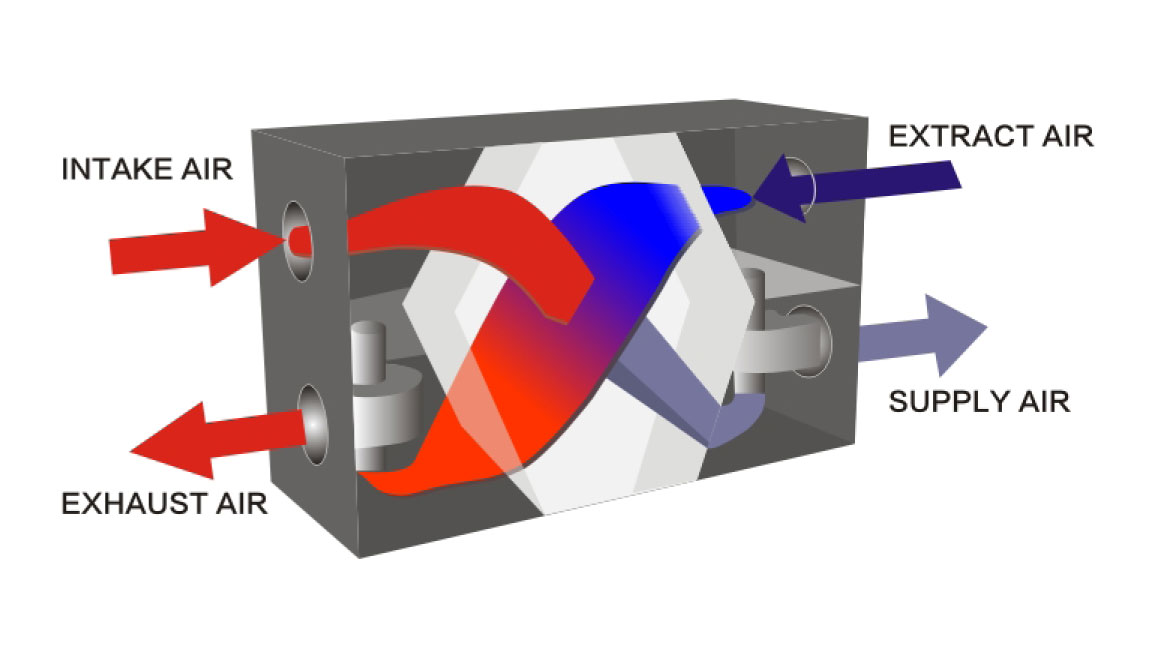

The HRV unit brings a continuous supply of fresh air into a home while exhausting an equal amount of contaminated air. During winter, fresh incoming air is tempered by the heat that is transferred from the outgoing air so you save on energy costs, while during summer, the incoming air is pre-cooled if the house is equipped with an air cooling system.

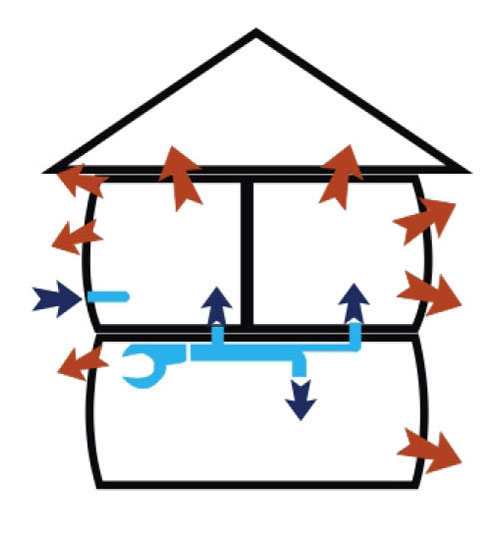

Supply Only Fan Application

Postive Air Pressure

Forces hot and/or humid air into walls and insulation.

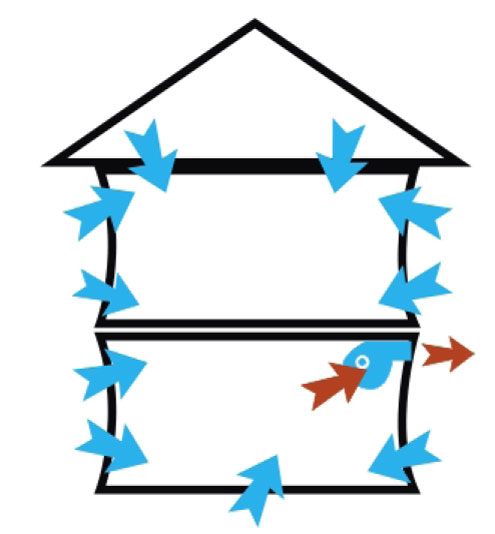

Exhaust Only Fan Application

Negative Air Pressure

The unfiltered air increases risks of mold and causes energy costs to be higher.

Energy saving principle

Heat recovery calculating equation

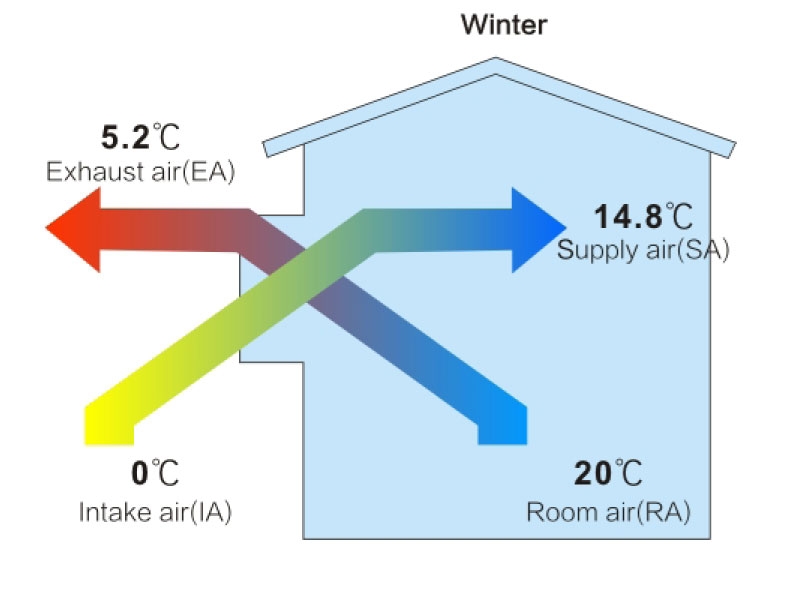

SA temp. = (RA temp. -IA temp.) Xtemp. recovery efficiency + OA temp. Example: 14.8°C = (20°C-0°C) x 74% + 0°C

Heat recovery calculating equation

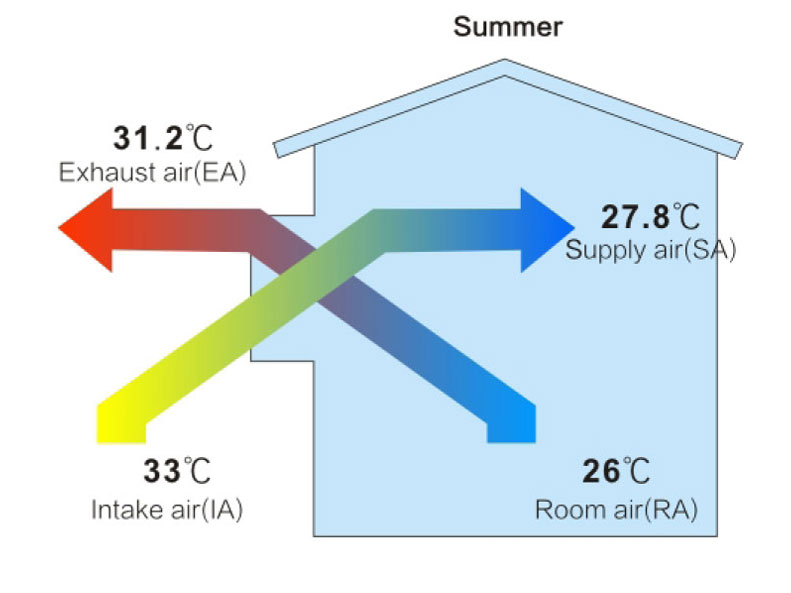

SA temp. = IA tmep.-(IA temp. -RA temp.) Xtemp. recovery efficiency Example: 27.8t = 33°C-(33°C-26°C) x 74%

Why You'll Love owning our Heat Recovery Ventilator

Indoor air is fresh, comfortable and healthy
Allergy & asthma triggers are removed
Room-to-room climates are more consistent
Dust less often
Helps control pet odors
You' II feel better - even sleep better
Your home will be safer from mold and mildew
Pet and cooking odors are cleared quickly
Maintenance is easy - system even alerts when it' s time for a filter change
The service life of your HVAC system is extended
Quiet operation
Best product support available
