Circular Duct Fan

Specifications

Supply and exhaust systems for various premises. The steel casing provides reliable operation in case of outdoorinstallation. For premises with high requirements to the noise level, we suggest units in low-noise modification .Circular Duct Fan are equipped with an energy-efficient motor with low energy demand. The motor is equipped withball bearings for long service life .The impeller with backward curved blades is powered by the single phase motorwith external rotor and overheating protection

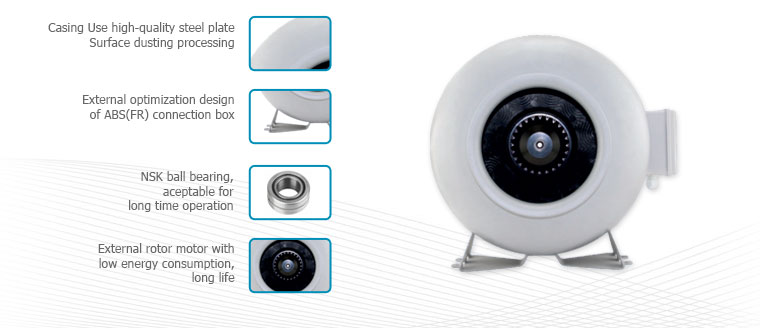

Features

The steel casing ensures reliable operation of the fan in case of its outside installation.
The motors are equipped with ball bearings for longer service life of the fan (5000 hours)
Safe operation and low noise, each turbine is dynamically balanced. Motor ingress protection rating IP44

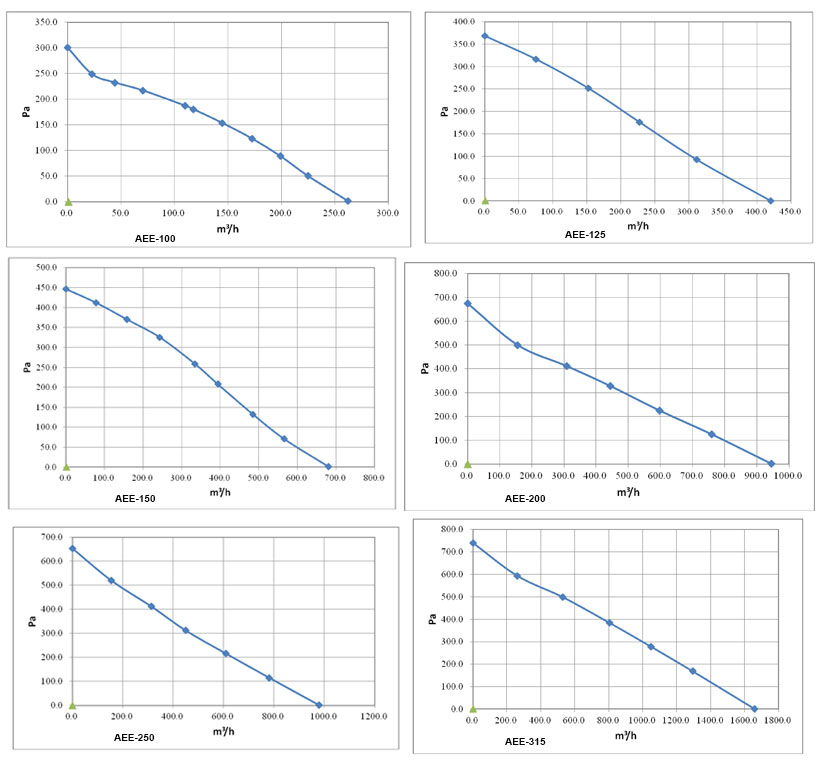

Performance Graph

Dimensions (mm)

Model	A	B	C	D	E
AEE-100G	97.5	202	242	24	23
AEE-125G	123	224	242	24	27
AEE-150G	147	224	333	26.5	25.5
AEE-200G	198	224	333	27	26.5
AEE-250G	248	206	333	27	30
AEE-315G	315	233	401	26	25
AEE-355G	350	410	505	35	35
AEE-400G	395	410	505	35	35.5

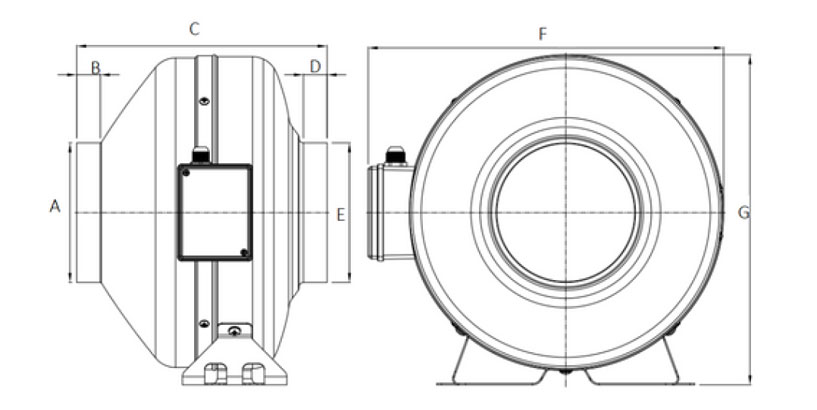

External Dimensions

Performance Parameter

Model	Unit	AEE-100G	AEE-125G	AEE-150G	AEE-200G	AEE-250G	AEE-315G	AEE-400G
Voltage	(V/Hz)	220-230/50	220-230/50	220-230/50	220-230/50	220-230/50	220-230/50	220-230/50
Speed	(RPM)	2500	2500	2500	2500	2500	2500	1580
Power	(W)	85	75	89	127	168	223	168
Air Flow	(m³/h)	290	370	740	1020	1050	1600	2500
Weight	(kg)	3.8	3.9	5.4	6.2	6.2	8.5	17.8
Noise	(dB)	65	65	68	70	72	75	60
Air Pressure	(Pa)	290	350	325	520	550	650	325
