Standard Features:

This is most valuable products

Airflow more than 1500m³/h.High technology Counterflow Nano-film heat exchanger core that the efficiency of energy recovery more than crossflow
Heat exchanger core more than 10 years warranty
External rotor motor, equiped with automatic reset thermal overload protection
Double way air filtration to bring fresh air and improve air quality
Integrated balancing damper and balancing port
Easy access service door
LCD controller
Filter:Includes washable primary filter, activated carbon filter and HEPA high efficient filter.
Optional Function: DC motor, Alumininum core, Defrost cycle etc

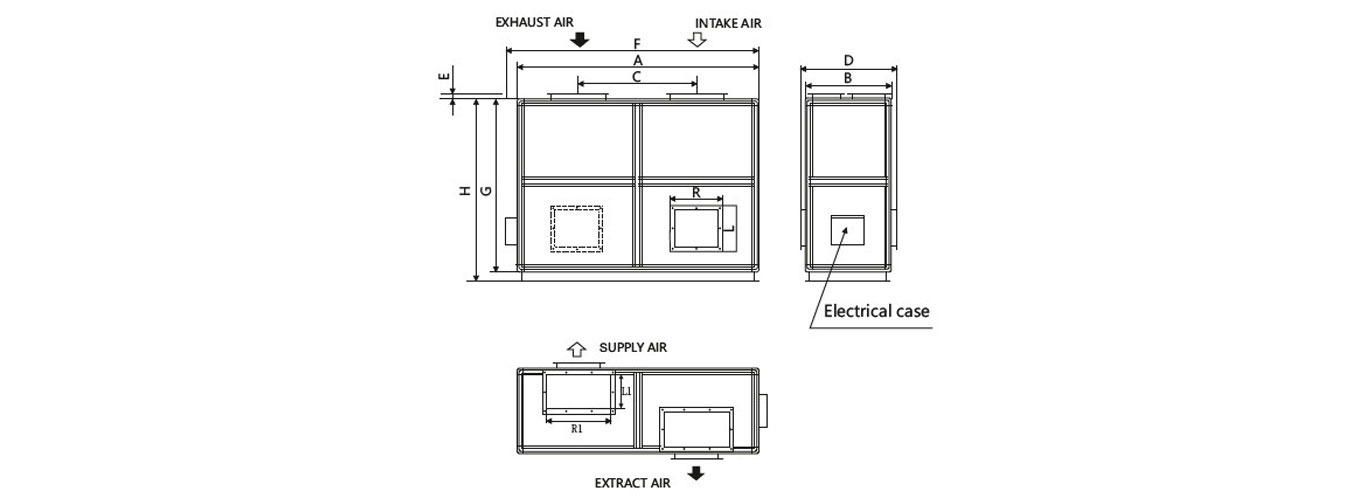

Dimension Table (mm)

Model	A	B	C	D	E	F	G	H	LxR	L1xR1
AHE-400TL	1850	790	835	890	50	1930	1600	1680	350 x 400	320 x 500
AHE-500TL	2250	790	1125	890	50	2330	1600	1680	350 x 400	320 x 600
AHE-600TL	2250	790	1265	890	50	2630	1600	1680	400 x 450	320 x 700
AHE-800TL	1850	1500	1290	1700	100	1950	2455	2555	1250 x 500	320 x 500
AHE-1000TL	2250	1500	1330	1700	100	2350	2635	2635	1250 x 500	400 x 500

Performance Parameter

Model	Unit	AHE-400TL	AHE-500TL	AHE-600TL	AHE-800TL	AHE-1000TL
Voltage	(V/HZ)	380/50/60	380/50/60	380/50/60	380/50/60	380/50/60
Airflow	(m³/h)	4000	5000	6000	8000	10000
Static Pressure	(Pa)	320	320	320	350	350
Enthalpy Exchange Efficiency	(%)	72	72	72	72	72
Rated Power	(W)	2200	3000	3600	4400	6000
Noise	(dB(A))	64	65	66	68	72
Weight	(Kg)	350	385	650	950	1150
Diameter of vent	(mm)	320 x 500	320 x 600	320 x 700	320 x 500	400 x 500
Machine Size	(mm)	1930 X 890 X 1680	2330 X 890 X 1680	2630 X 890 X 1680	1950 X 1500 X 2555	2350 X 1700 X 2635

Common Ventilation Issues for

Homes and Light Commercial Buildings

The HRV unit brings a continuous supply of fresh air into a home while exhausting an equal amount of contaminated air. During winter, fresh incoming air is tempered by the heat that is transferred from the outgoing air so you save on energy costs, while during summer, the incoming air is pre-cooled if the house is equipped with an air cooling system.

Supply Only Fan Application

Postive Air Pressure

Forces hot and/or humid air into walls and insulation.

Exhaust Only Fan Application

Negative Air Pressure

The unfiltered air increases risks of mold and causes energy costs to be higher.

Energy saving principle

Heat recovery calculating equation
SA temp. = (RA temp. -IA temp.) Xtemp. recovery efficiency + OA temp. Example: 14.8°C = (20°C-0°C) x 74% + 0°C

Heat recovery calculating equation
SA temp. = IA tmep.-(IA temp. -RA temp.) Xtemp. recovery efficiency Example: 27.8t = 33°C-(33°C-26°C) x 74%

Why You'll Love owning our Heat Recovery Ventilator

Indoor air is fresh, comfortable and healthy
Allergy & asthma triggers are removed
Room-to-room climates are more consistent
Dust less often
Helps control pet odors
You' II feel better - even sleep better
Your home will be safer from mold and mildew
Pet and cooking odors are cleared quickly
Maintenance is easy - system even alerts when it' s time for a filter change
The service life of your HVAC system is extended
Quiet operation
Best product support available

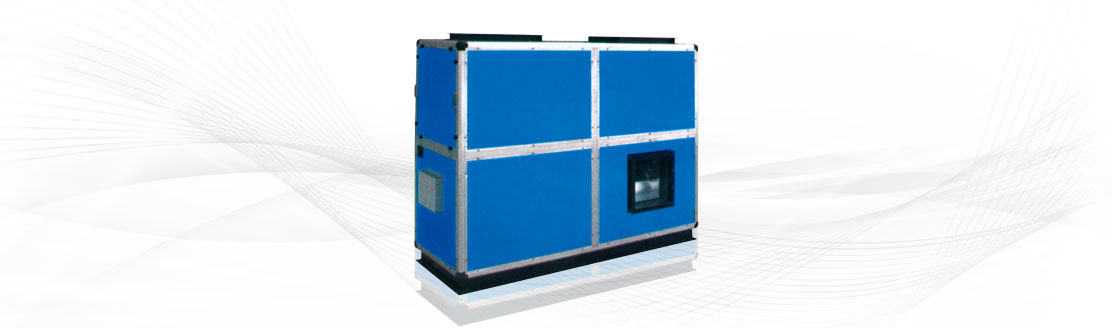

COMMERCIAL TL SERIES
