Devoted to the indoor air processing 14 years
Life-Long Services

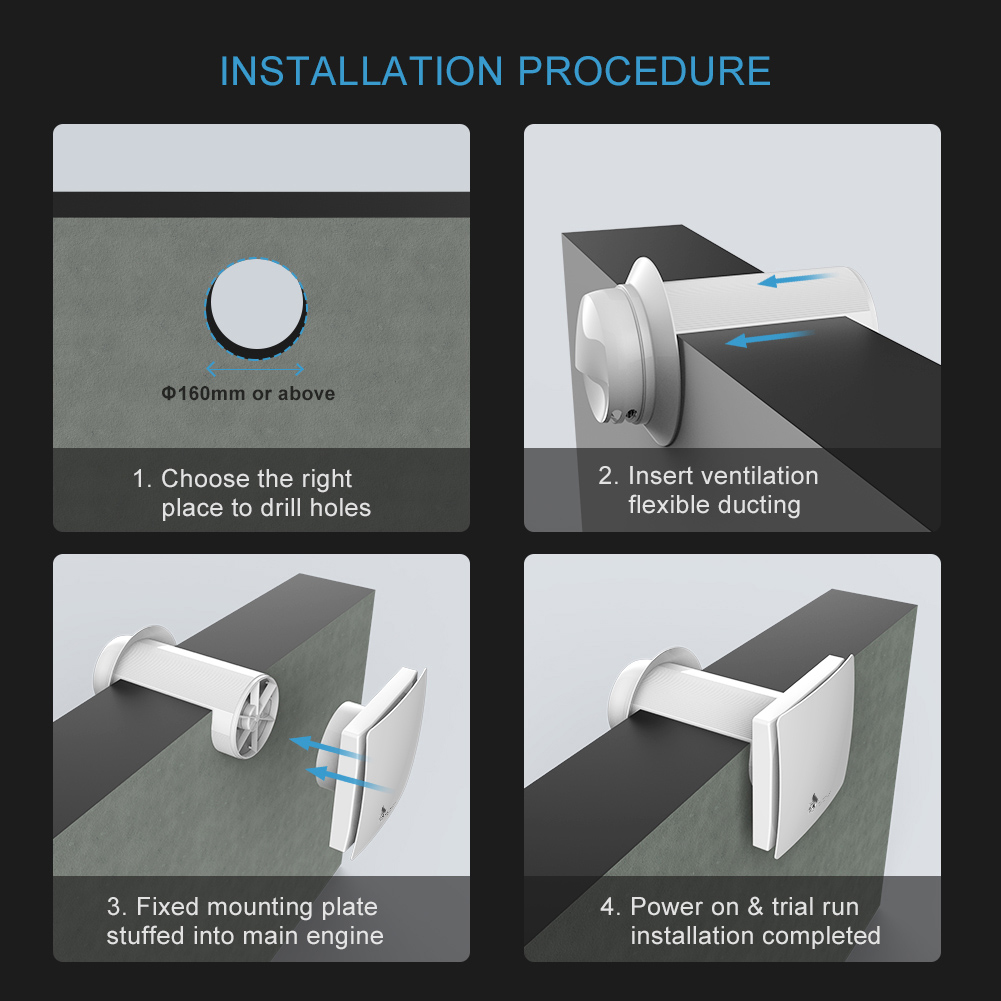

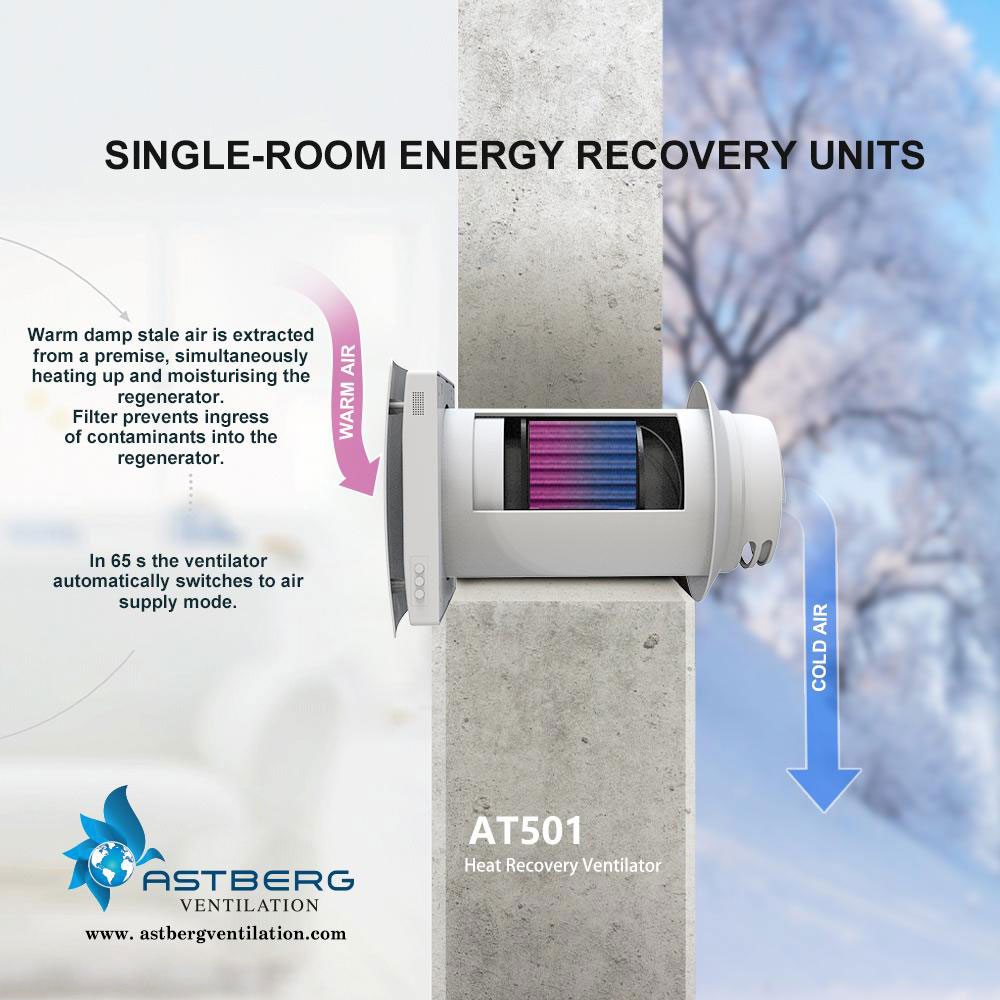

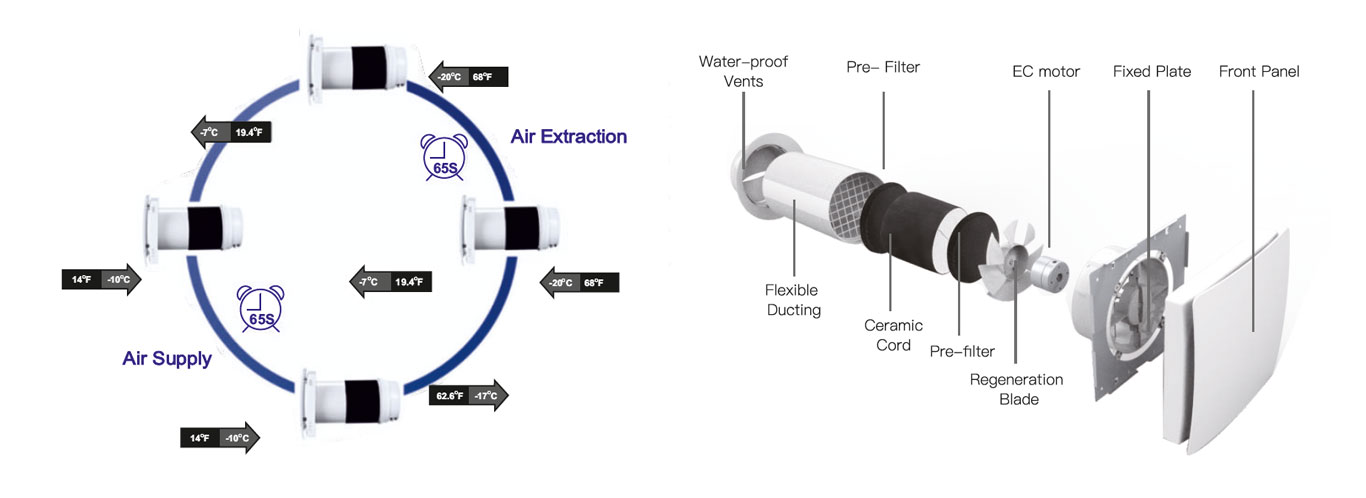

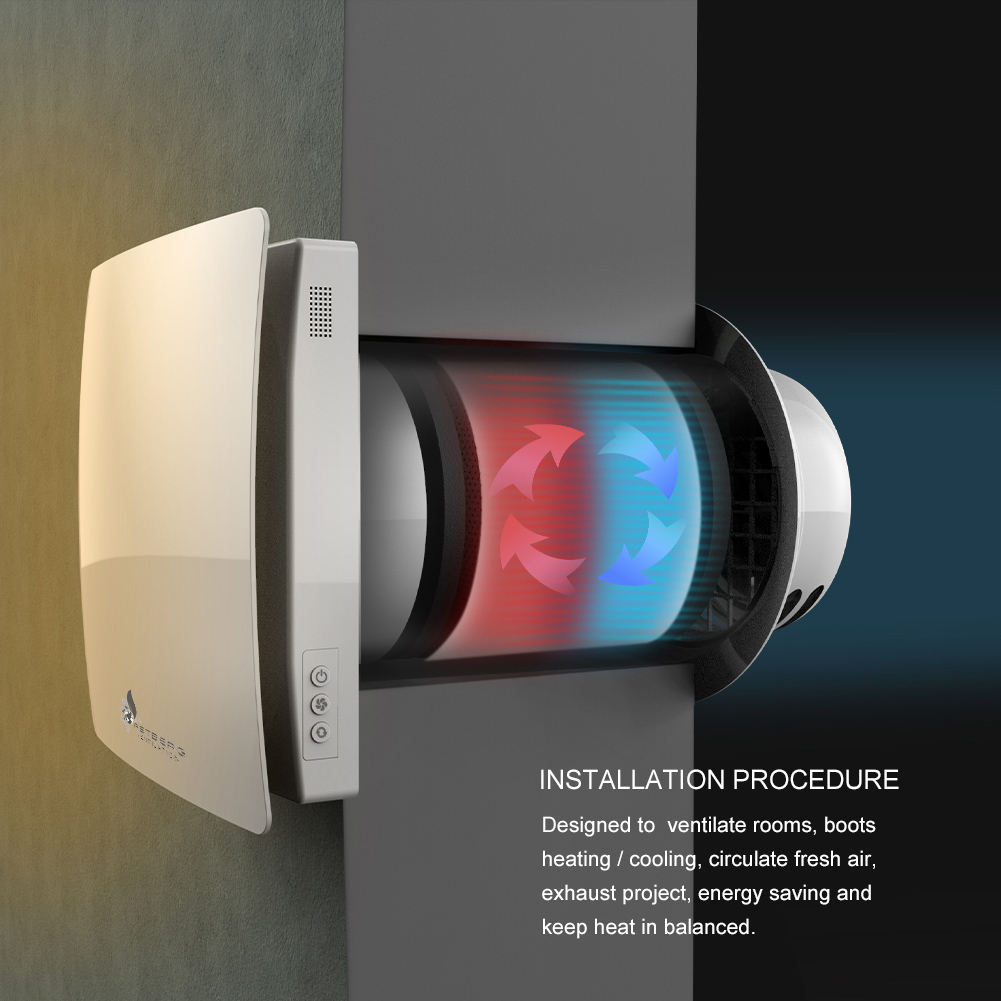

AT501 systems are direct interface between the inside air and the outside air, installed in a sleeve that passes through the wall. AT501 systems work in pairs : units are wired together to ensure the house is not pressurized or depressurized, one blows in while the other blows out; then after about a minute, they both reverse directions.
This is one of the most valuable products
| Speed | Power(W) | Current(Amps) | Air Capacity(m3/h) | RPM(min) | Voltage(VAC) | Operating Temperature(C)/(PF) | Heat Exchange Efficiency |
|---|---|---|---|---|---|---|---|
| I | 1.8 | 0.019 | 48 | 651 | 90-240 | -20oC(-4F)TO +50oC(122F) | UPTO 90% |
| II | 3.9 | 0.034 | 54 | 956 | 90-240 | -20oC(-4F)TO +50oC(122F) | UPTO 90% |
| III | 6.0 | 0.0533 | 60 | 1261 | 90-240 | -20oC(-4F)TO +50oC(122F) | UPTO 90% |
