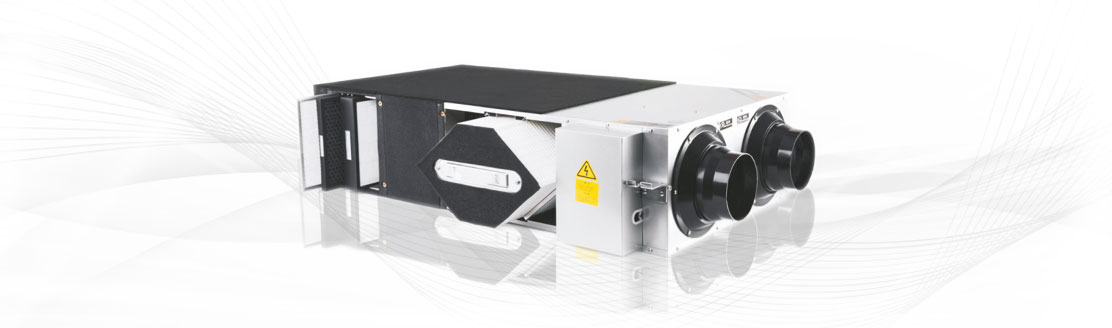

Standard Features:

This is most valuable products

Airflow from 100m³/h-1200m³/h.High technology Counterflow Nano-film heat exchanger core that the efficiency of energy recovery more than crossflow
Heat exchanger core more than 10 years warranty
External rotor motor, equiped with automatic reset thermal overload protection
Double way air filtration to bring fresh air and improve air quality
Integrated balancing damper and balancing port
Easy access service door
LCD controller
Filter: Washable three levels filters include Primary Filter, HEPA high efficient filter, Activated Carbon filter, air filters in exhaust and supply air streams.

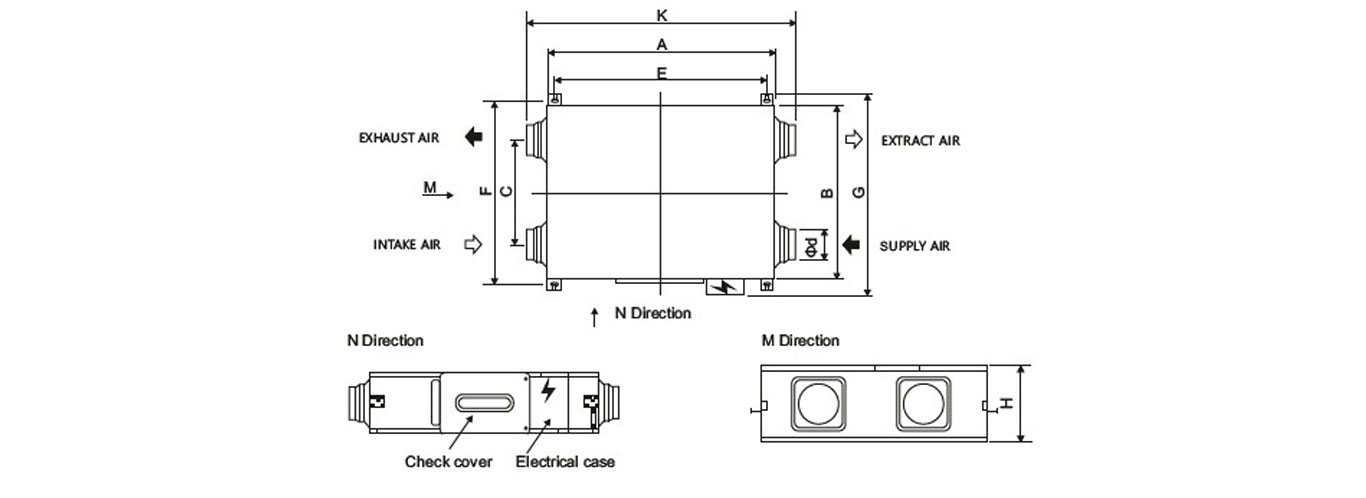

Model	A	B	C	E	F	G	H	K	Φ d
AHE-20THP	695	490	255	665	530	565	238	835	150
AHE-25THP	1135	600	318	1060	660	735	275	1330	150
AHE-35THP	1135	740	458	1060	800	875	275	1330	150
AHE-50THP	1220	900	635	1150	970	1040	320	1370	200

Performance Parameter

Model	Unit	AHE-20THP	AHE-25THP	AHE-35THP	AHE-50THP
Voltage	(V/HZ)	220/50	220/50	220/50	220/50
Airflow	(m³/h)	200/150	250/200/160	350/270/200	500/360/300
Static Pressure	(Pa)	80	98	110	175
Enthalpy Exchange Efficiency	(%)	72-78	72-78	72-78	72-78
Rated Power	(W)	76.3	126.8	164.4	247.6
Noise	(dB(A))	37/31	35/33/31	36/34/32	38/36/32
Weight	(Kg)	19	30	37	43
Diameter of vent	(mm)	150	150	150	200
Machine Size	(mm)	695X495X235	1135X600X275	1135X740X275	1220X900X320

Common Ventilation Issues for

Homes and Light Commercial Buildings

The HRV unit brings a continuous supply of fresh air into a home while exhausting an equal amount of contaminated air. During winter, fresh incoming air is tempered by the heat that is transferred from the outgoing air so you save on energy costs, while during summer, the incoming air is pre-cooled if the house is equipped with an air cooling system.

Supply Only Fan Application

Postive Air Pressure

Forces hot and/or humid air into walls and insulation.

Exhaust Only Fan Application

Negative Air Pressure

The unfiltered air increases risks of mold and causes energy costs to be higher.

Energy saving principle

Heat recovery calculating equation
SA temp. = (RA temp. -IA temp.) Xtemp. recovery efficiency + OA temp. Example: 14.8°C = (20°C-0°C) x 74% + 0°C

Heat recovery calculating equation
SA temp. = IA tmep.-(IA temp. -RA temp.) Xtemp. recovery efficiency Example: 27.8t = 33°C-(33°C-26°C) x 74%

Why You'll Love owning our Heat Recovery Ventilator

Indoor air is fresh, comfortable and healthy
Allergy & asthma triggers are removed
Room-to-room climates are more consistent
Dust less often
Helps control pet odors
You' II feel better - even sleep better
Your home will be safer from mold and mildew
Pet and cooking odors are cleared quickly
Maintenance is easy - system even alerts when it' s time for a filter change
The service life of your HVAC system is extended
Quiet operation
Best product support available
