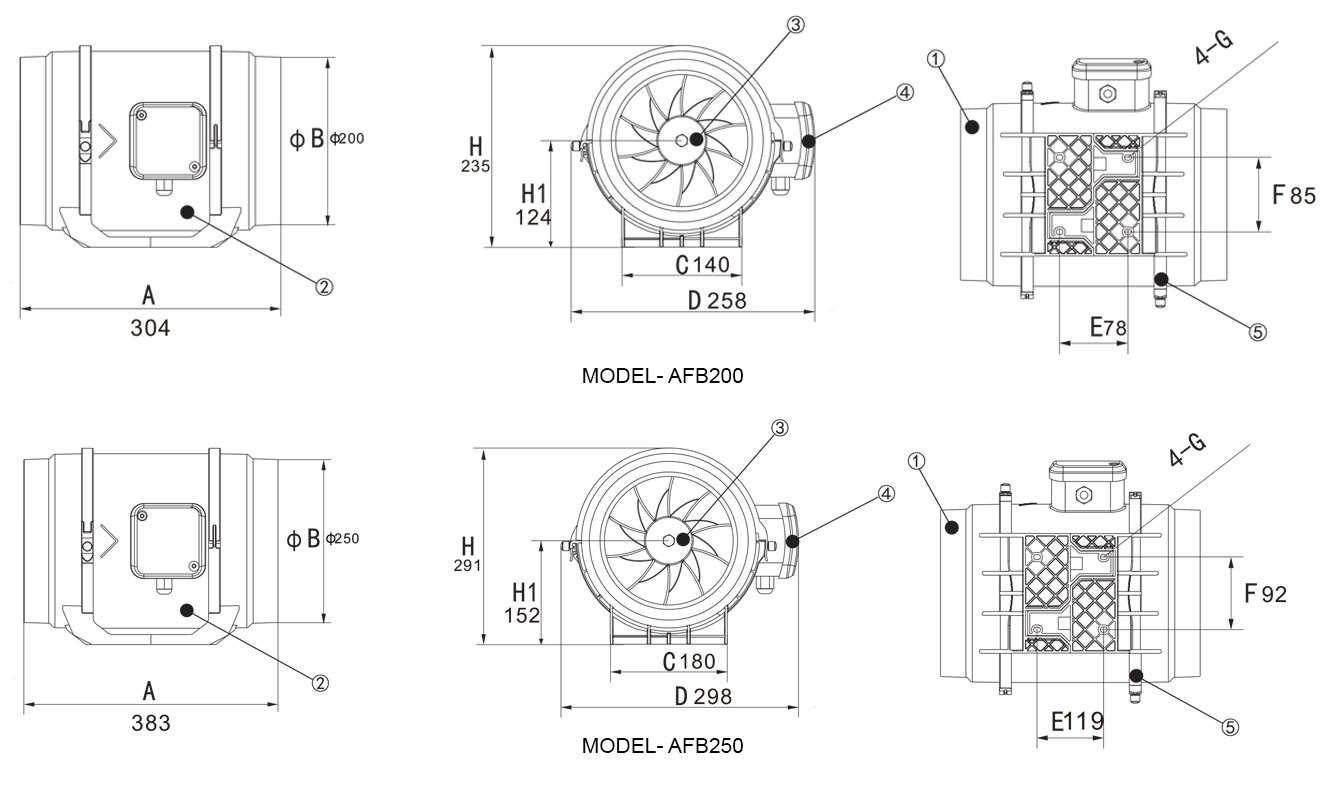

| Model | A | ΦB | C | D | E | F | G (Long Hole) | H | H1 |
|---|---|---|---|---|---|---|---|---|---|
| AFB200 | 304 | Φ200 | 140 | 258 | 78 | 85 | 8 x 6 | 235 | 124 |
| AFB250 | 383 | 250 | 180 | 298 | 119 | 92 | 11 x 8 | 291 | 152 |
| Model | Unit | AFB200 | AFB250 |
|---|---|---|---|
| Power | (W) | 70/60 | 170/130 |
| Air volume | (m3/h) | 850/700 | 1500/1100 |

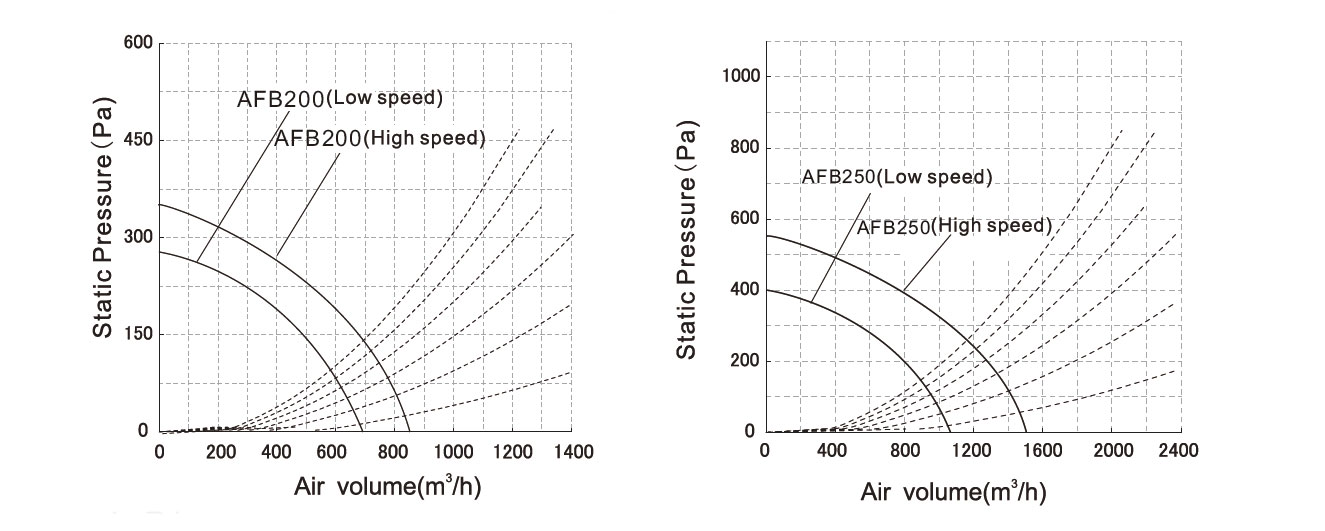

| Static pressure | (Pa) | 350/280 | 550/400 |
| Noise | (dB) | 50/45 | 60/54 |
| Duct size | (mm) | 200 | 250 |
| Net weight | (kg) | 3.1 | 7 |
| Applicable area | (m3) | 34-76 | 42-84 |
