Accessories

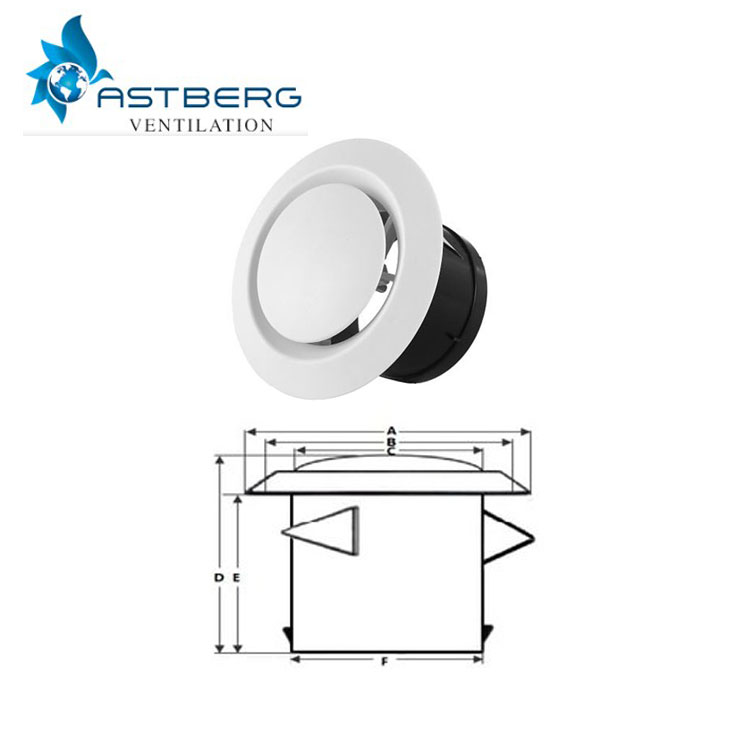

Disk Diffuser

Model Size A B C D E F
JS506 75mm 120 100 70 88 71 72
JS506 100mm 148 112 90 85 71 95
JS506 125mm 180 140 115 87 73 120
JS506 150mm 210 165 140 90 75 145
JS506 200mm 266 218 190 100 80 195
  • The middle disc adjusting design is convenient to adjust the air volume and the balance of air pressure.
  • The panel and gear sleeve can be separated, easy to install and clean.
  • Suitable for air outlet of household and commercial air fresh system to adjust air volume.

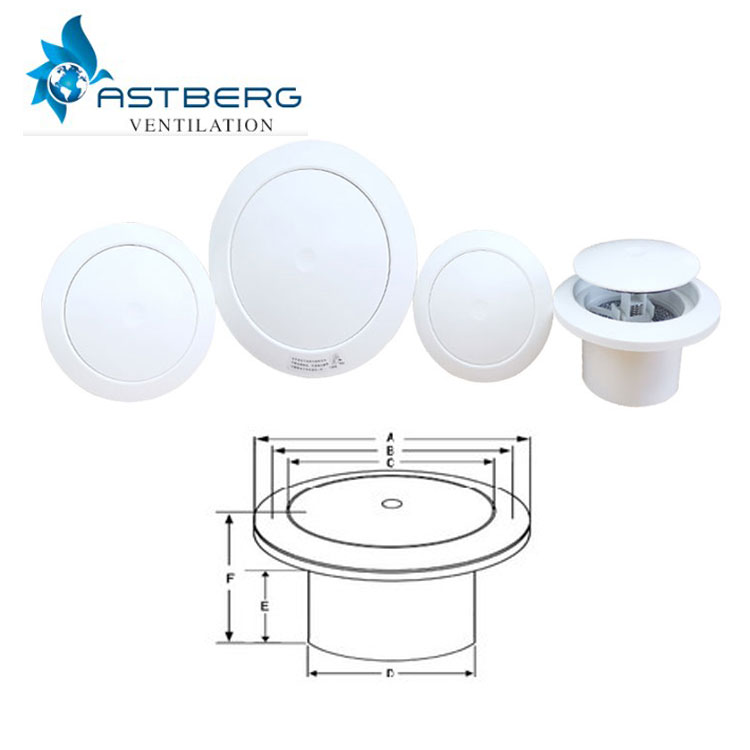

3 Step Diffuser

Model Size A B C D E F
AK 120-E 100mm 150 130 110 95 62 90
AK 150-E 150mm 205 185 152 144 62 93
  • The design of three stage press adjustment can be used more than 20000 times.
  • The panel is detachable, can be installed on the ceiling or wall.
  • With silver ion filter, it can effectively kill harmful bacteria.

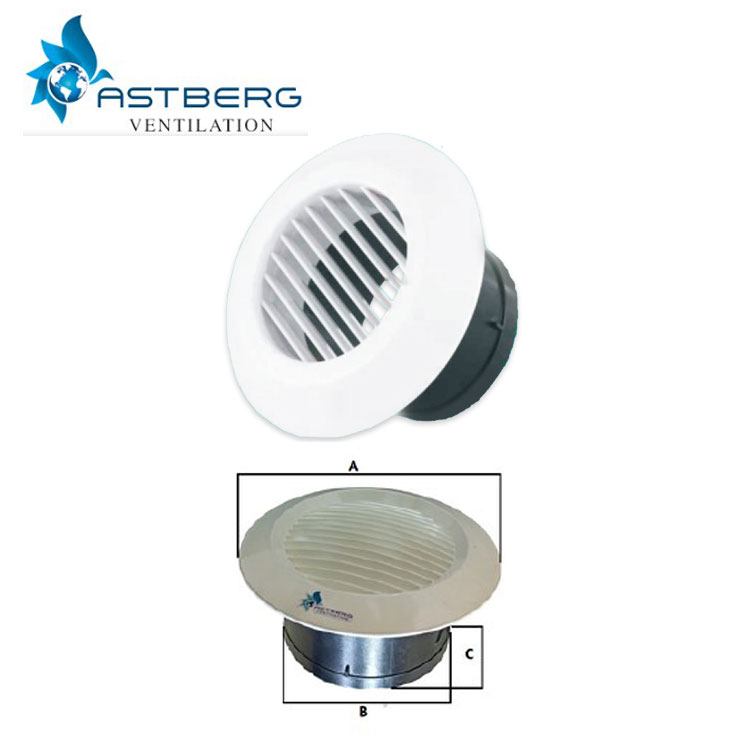

Round Grill

Model Size A B C
JS 522 75mm 115 73 80
JS 522 100mm 148 95 80
JS 522 125mm 179 120 80
JS 522 150mm 210 145 80
JS 522 200mm 270 270 100
  • The straight louver design, low wind resistance and low noise.
  • The panel and gear sleeve can be separated, easy to install and clean.
  • Suitable for air outlet of household and commercial air fresh system to adjust air volume.

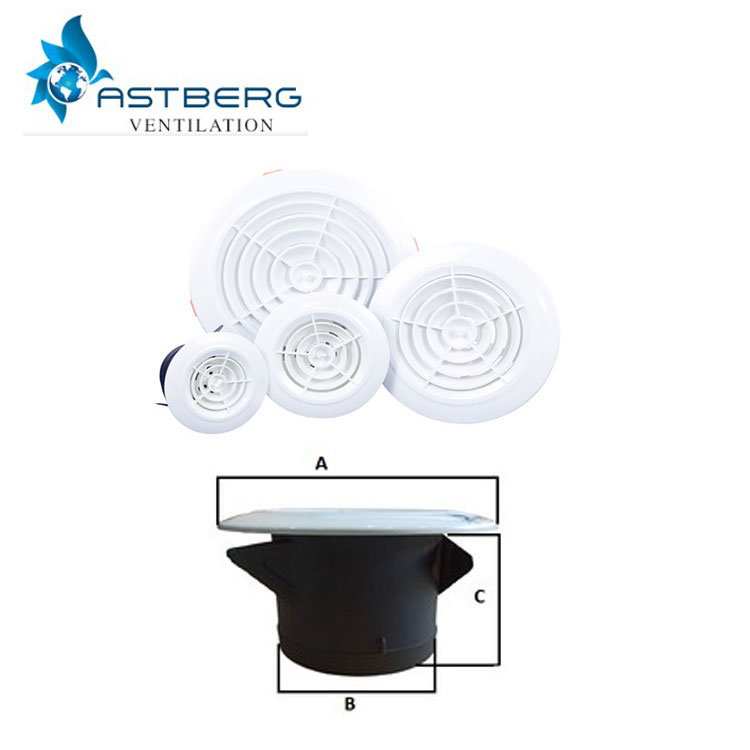

Rotating Grill Diffuser

Model Size A B C
AK 100-A 100mm 148 95 80
AK 125-A 125mm 180 120 86
AK 150-A 150mm 210 145 92
  • The middle disc adjusting design is convenient to adjust the air volume and the balance.
  • The panel and the gear sleeve can be separated, easy to install and clean.
  • Suitable for air outlet of household and commercial air fresh system to adjust air volume.

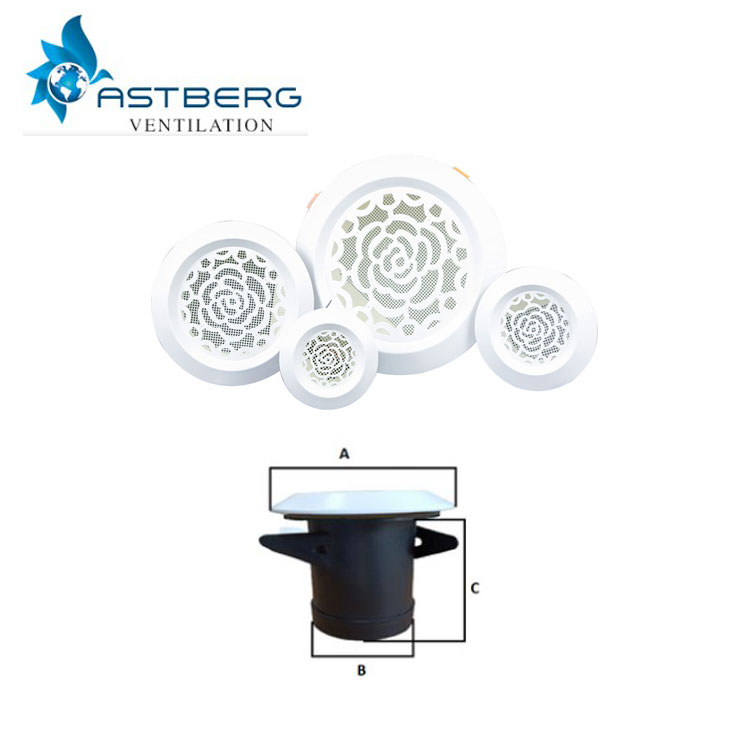

ABS Fancy Grill

Model Size A B C
AK 100-H 100mm 148 95 80
AK 150-H 150mm 210 145 80
  • The rose design, beautiful appearance.
  • The panel and gear sleeve can be separated, easy to install and clean.
  • Suitable for air outlet of household and commercial air fresh system.

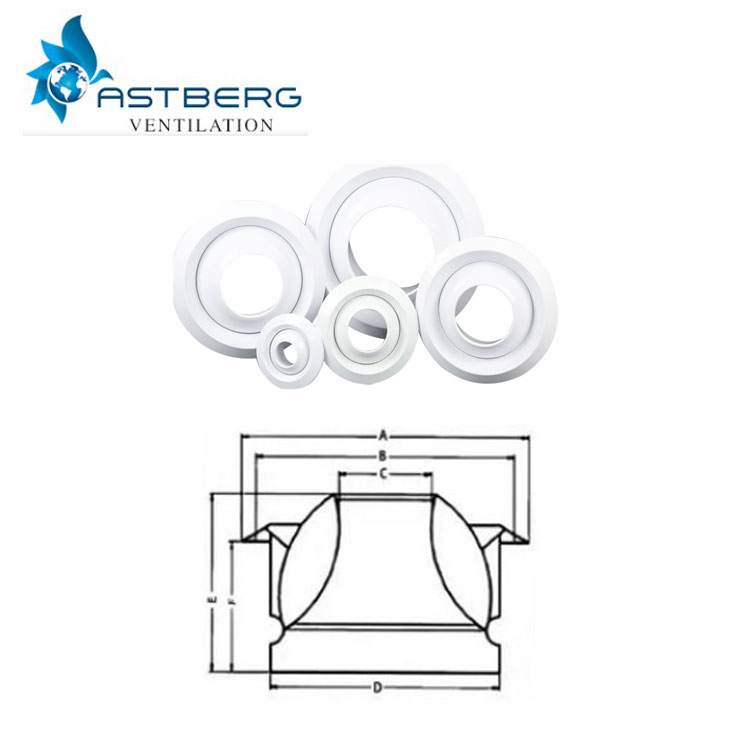

ABS Ball Jet Nozzle

Model Size A B C D E F
AK075-P 75mm 105 96 30 71 66 48
AK100-P 100mm 138 118 46 98 80 57
AK150-P 150mm 198 178 76 148 110 82
AK200-P 200mm 263 241 105 198 140 100
AK250-P 250mm 303 279 120 248 180 135
AK315-P 315mm 383 359 178 313 233 176
AK400-P 400mm 470 440 205 398 280 179
  • Conical nozzle make the air volume more concentrated and the air supply distance is longer.
  • The angles of air supply is 180°, air supply is more comprehensive.
  • It is suitable for air supply of large area, such as high speed railway station, subway, gymnasium, station hall etc.
