Accessories

Steel Cowl

Model Size A B C D E
NSF 100 Q 100mm 98 45 147 120 113
NSF 150 Q 150mm 145 55 186 152 143
NSF 200 Q 200mm 190 68 225 184 173
  • The range is complete, the material is thick, the process is exquisite.
  • The grid layout inclined louver with aluminium alloy net can be wind-proof, rainproof and insect-proof.
  • The whole series of products are bright polished.

Outer Cowl Powder Coated

Model Size A B C D E
NSF 100 Q-Grey 100mm 98 45 147 120 113
NSF 150 Q-Grey 150mm 145 55 186 152 143
  • High quality with thick material and exquisite process.
  • The grid layout inclined louver with aluminium alloy net can be wind-proof, rain-proof and insect-proof.
  • The whole series of products are silver-grey coating.

Outer Flat Grill Steel

Model Size A B C
NSF 100P 100mm 148 95 80
NSF 150P 150mm 210 145 80
  • The range is complete, the material is thick, the process is exquisite.
  • The grid layout inclined louver with aluminium alloy net can be wind-proof insect-proof.
  • The whole series of products are bright polished.

Outer Grill ABS

Model Size A B C D E F
FK 100-Y 100mm 180 180 150 97 28 45
FK 1050-Y 150mm 180 180 150 147 28 45
  • The design is reasonable, which can be removed to replace or clean the filter.
  • Suitable for air outlet of external wall or air vent of heat dissipation for equipment.

ABS Oblique Air Grill

Model Size A B C
AFM 100A 100mm 98 185 128
AFM 150A 150mm 147 185 128
  • Adopt the check valve baffle plate, the wind resistance is small, and the air duct is not blocked.
  • Using anti-aging, anti-ultraviolet materials, more durable.
  • Used exclusively for external wall exhaust.

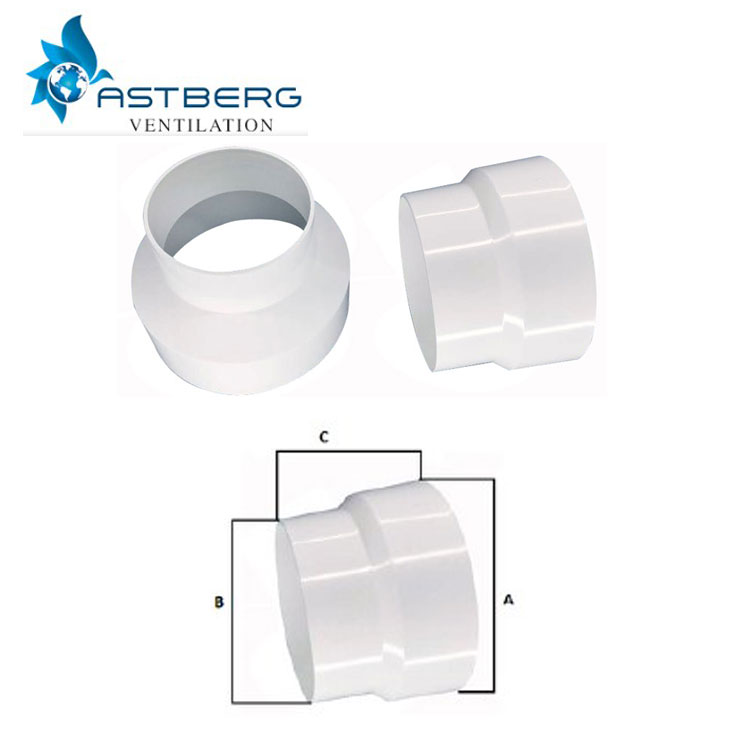

ABS Reducer

Model Size(Inch) A B C
BJ150/100 6-4 155 95 89
BJ200/150 8-6 210 165 89
BJ250/200 10-8 260 210 89
BJ315/250 12-10 325 260 89
  • Using a new ABS plastic one-piece molding, with a simple appearance and porcelain white.
  • Solving the conversion interface of different sizes.
  • Make the construction more standardized and more efficient.

PVC Flexible Duct

Internal Diameter Package Size Expand
100MM 0.5m 10m
150MM 0.5m 10m
200MM 0.5m 5m
  • It is made of double-wall aluminium foil with additional seat, IPVC Qi, and instant burning steel wire brand.
  • The EU standard water is used, which is environmentally friendly.
  • Thick layer of grey PVC on this ducting prevents light leaks and repels heat from your light fixtures.

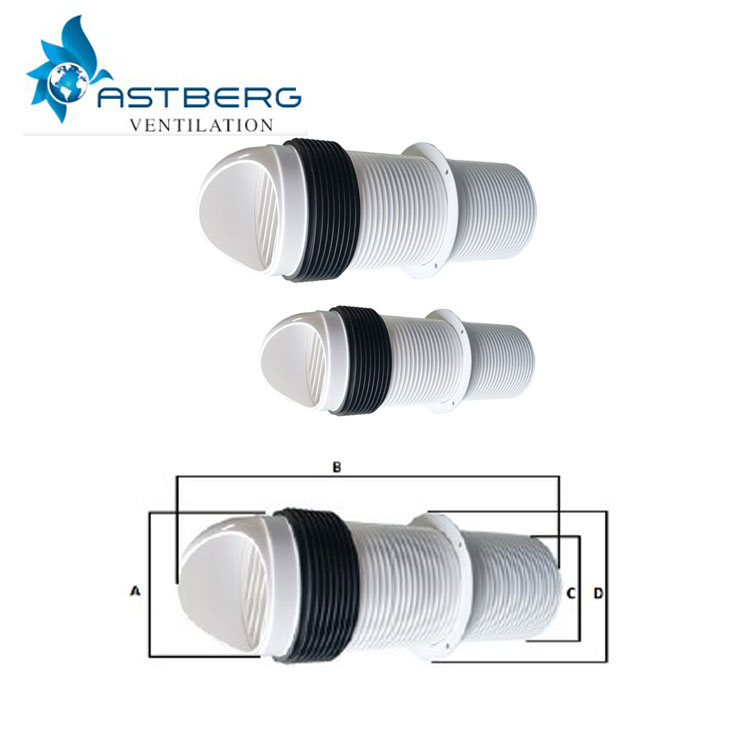

ABS Reducer

Model Size A B C D
AFM 100-S 100mm 122 485 112 140
AFM 150-S 150mm 170 485 160 180
  • Adopt the design that can increase and decrease the pipeline.
  • Suitable for different north and south regions.
  • The external thread of the pipe is designed to tighten, which is more convenient for installation and fixation.

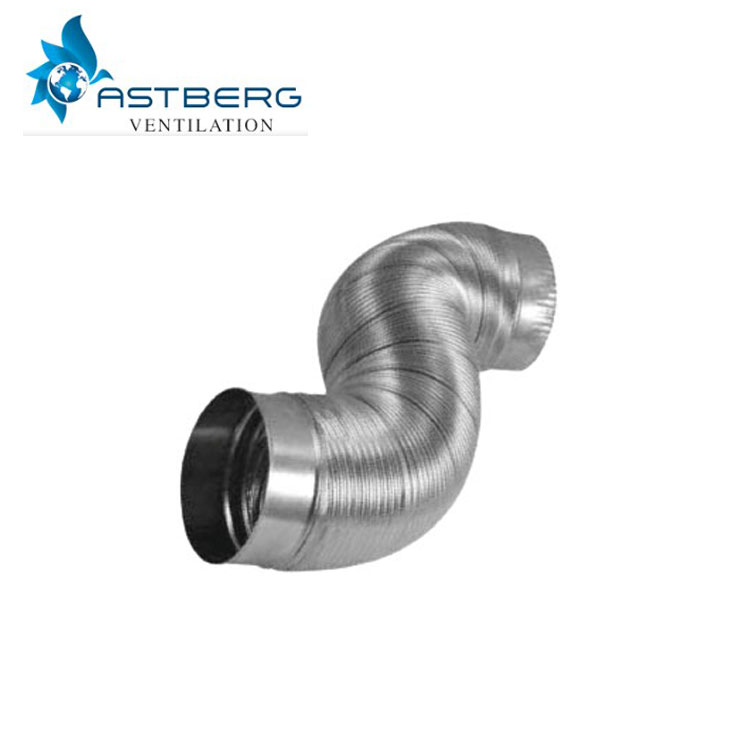

Aluminium Flexible Duct

Internal Diameter Package Size Expand
100MM 1m 3m
125MM 1m 3m
150MM 1m 3m
200MM 1m 3m
250MM 1m 3m
  • Aluminium Flexible Duct is constructed using a special aluminium alloy that prevents corrosion and metal fatigue.
  • The machine fabrication produces a continuous lock seam that permits the duct to be pulled open, compressed, bent and re-bent without developing leakages.
  • Our aluminium duct does not delaminate or die out when it is heat aged and can be installed with severe bends.

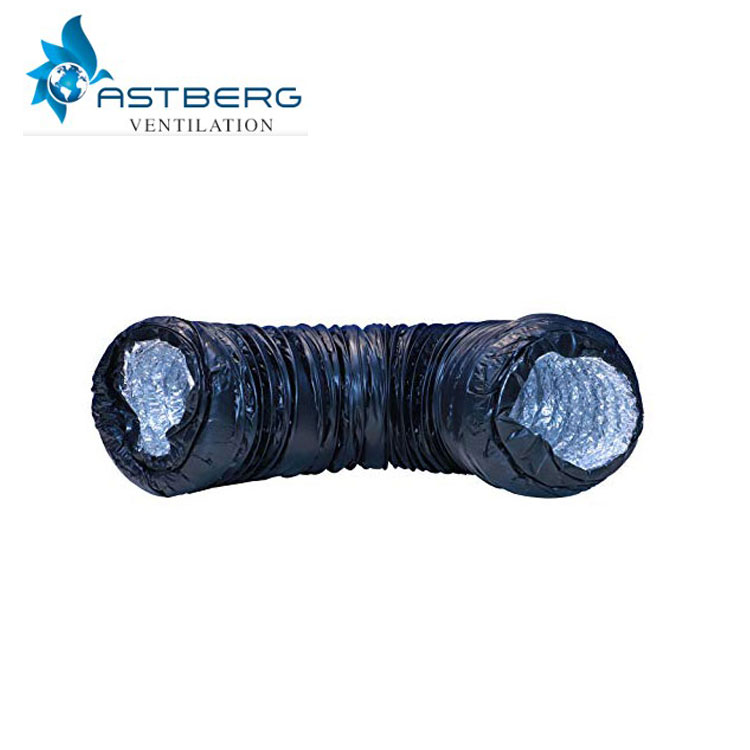

Noise Reducer

Size
100MM
150MM
200MM
  • Noise Reducer for Inline Duct Fan.
  • Reduces irritating and damaging noise levels for auditory health and more pleasant living and working spaces.
  • Decreases fan noise up to 50%.

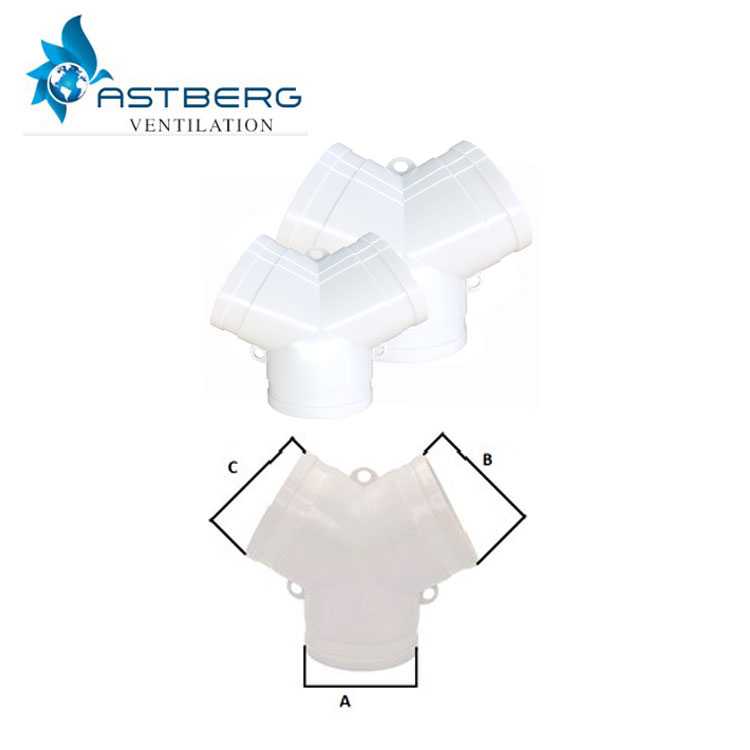

Y Joint PVC

Model Size A B C
AT100-Y 100MM 95 95 95
AT150-Y 150MM 145 145 145
  • Using new ABS plastic integral molding, simple appearance and porcelain white.
  • The Y-shaped three-way air flow is more even.
  • The first design with mounting ears makes the installation more convenient.

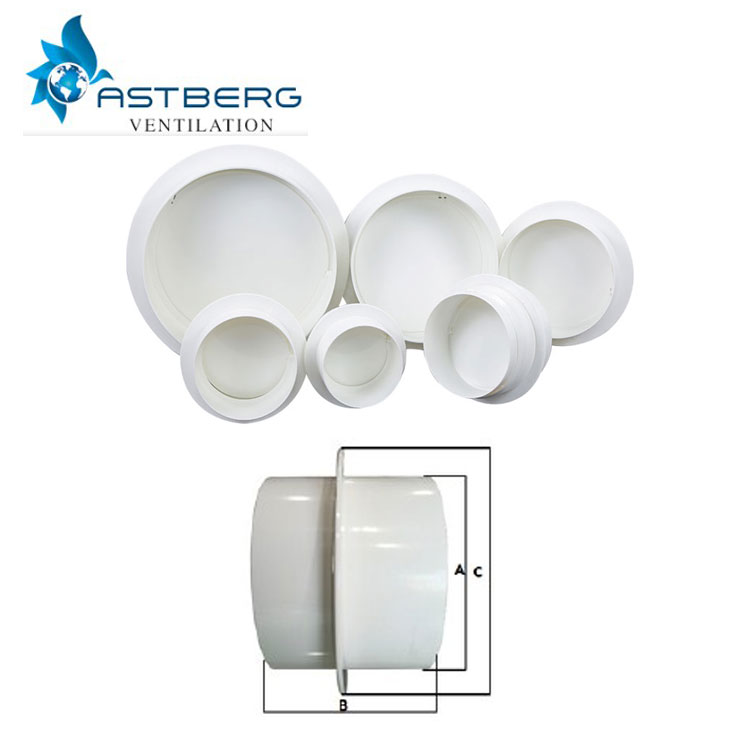

Air Fresh Pipeline Check Valve

Model Size A B C
AZ110-F 110MM 103 84 128
AZ150-F 150MM 150 84 178
  • Scientific design, better sealing, small blowing angle and low wind resistance.
  • The design of self-drooping without power can effectively prevent air pouring and prevent mosquitoes from entering.
  • Two-way pipe design, the installation is more convenient.

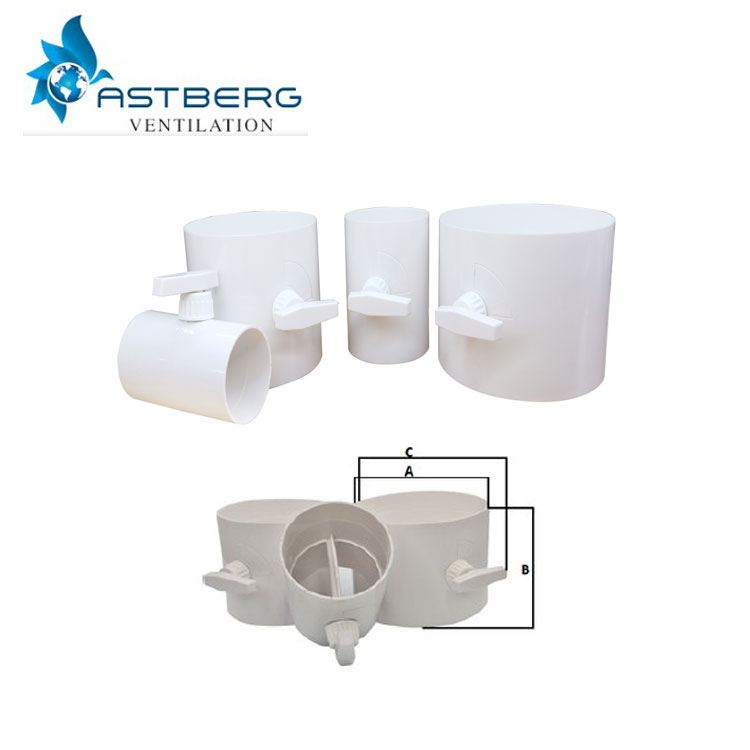

ABS Air Volume Control Valve

Model Size A B C
TJ100-F 100MM 100 145 155
TJ150-F 150MM 150 145 205
TJ200-F 200MM 200 145 245
  • Using new ABS plastic one-piece molding, simple appearance and porcelain white.
  • Scientific design, better sealing, large blowing angle and small wind resistance.
  • Automatically closed without power, can effectively prevent air from falling into the tank, and even more Mosquito entry.
  • Two-way takeover design, easier to install.

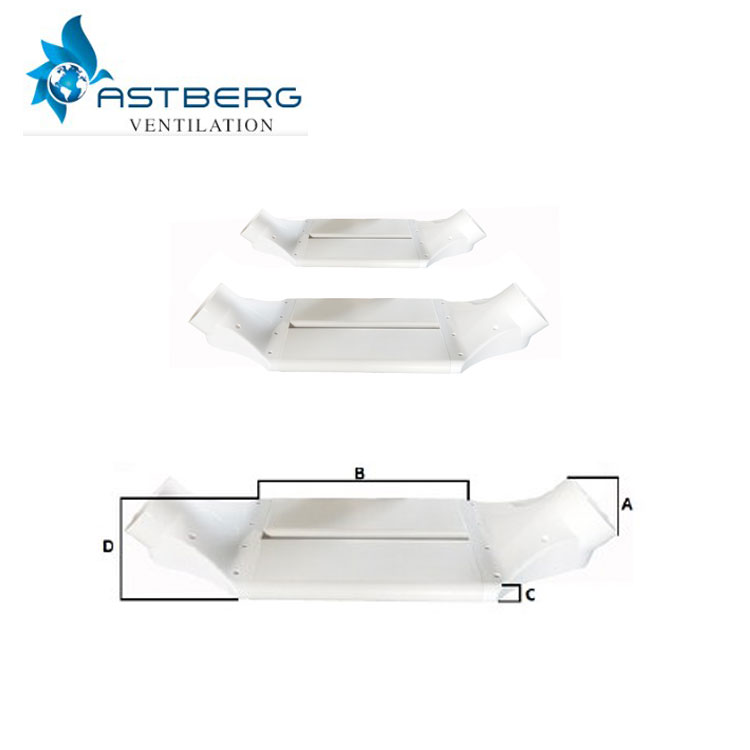

Beam Crosser

Model Size A B C D
GL100-Q 100mm 110 370 33 270
GL150-Q 150mm 160 460 33 395
  • It is composed of Renxin ABS joint and PVC flat pipe.
  • Modern Design and airtight.
  • The lintel is not perforated and the building structure is safer the grid has a caliber of 110.116

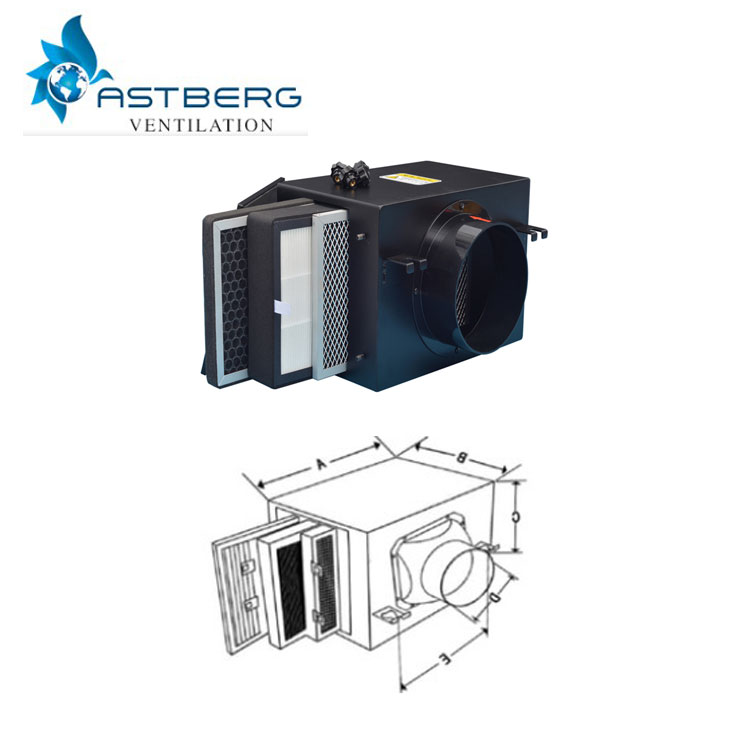

Filter Box

Model Size A B C D E
AL100 100MM 300 200 200 95 245
AL150 150MM 300 200 200 95 245
AL200 200MM 430 300 300 195 350
  • The box body adopts the unique sealing welding design, the surface is electrostatic spraying.
  • The quadruple filtration (primary effect, high efficiency, activated carbon, silver ion) can be effectively filtering.
  • PM2.5 and formaldehyde etc. other harmful substances.
  • The humanized design does not request to use any tools to replace the filter core.

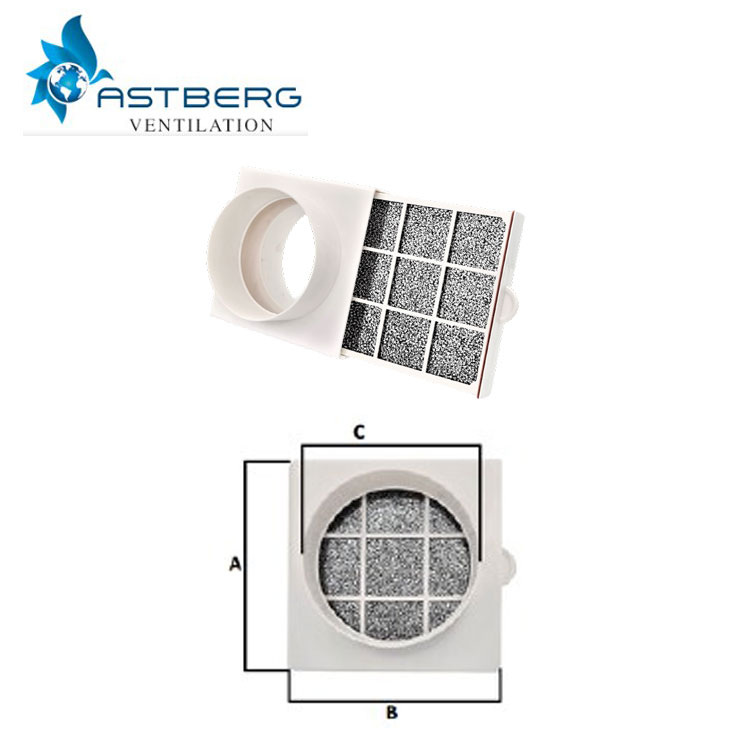

ABS Pre Filter

Model A B C
100MM 180 180 100
150MM 180 180 150
  • A pre-filter is a device that filters big particles from the air before it enters the room.
  • Pre-filters are used in air purifying equipment that is installed in homes, commercial buildings, transports, and public areas.
  • Easy to clean.

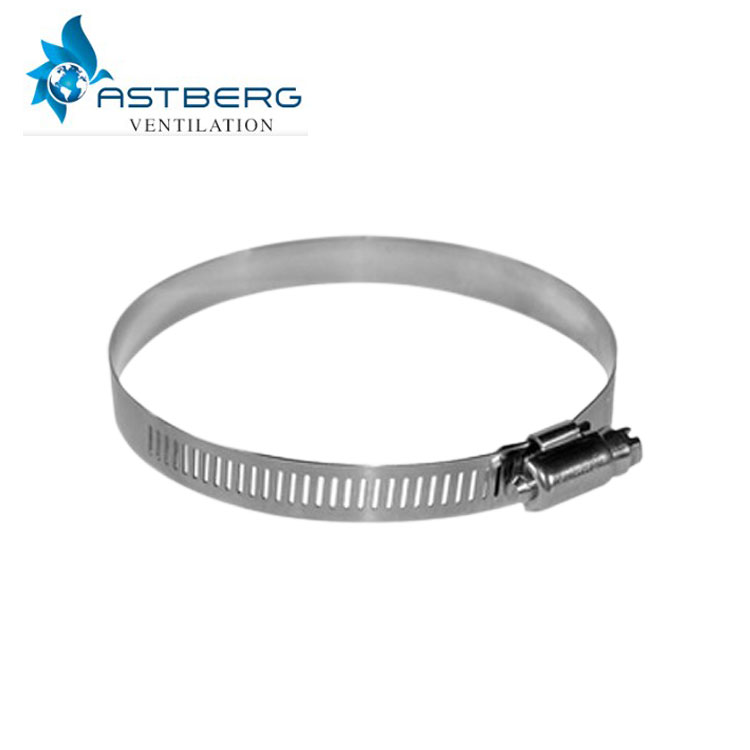

Steel Clumps

Size Tighten Grip
100MM 90-115
150MM 140-165
200MM 195-220
250MM 230-255
315MM 290-310
  • The whole series of 201 stainless steel is refined;
  • The design is scientific, and the steel belt will not be detached due to the large force;
  • It adopts external hexagon and one-word slot, which is more convenient to install.

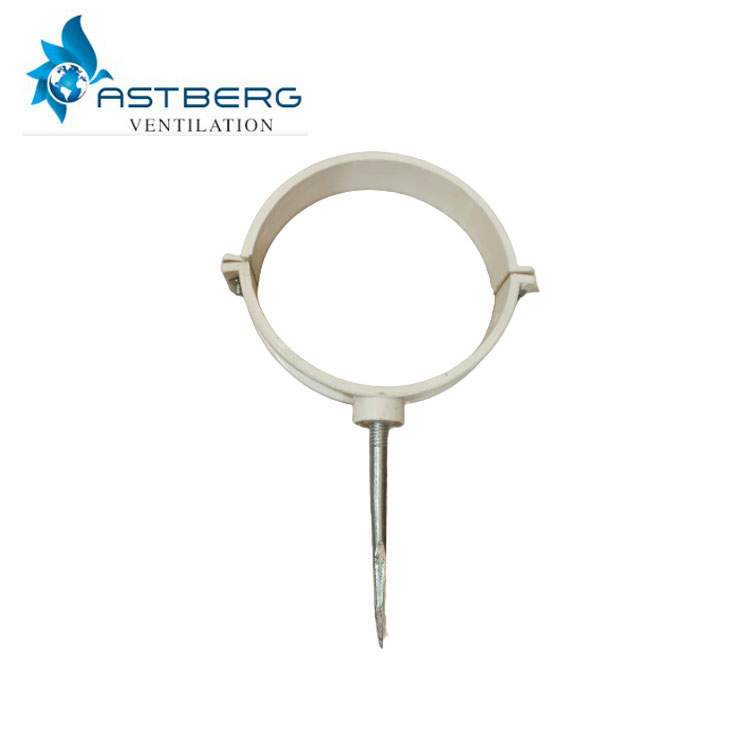

PVC Clumps

Size
100MM
150MM
200MM
  • Made from high-quality PVC.
  • The design is scientific, and the tremendous force will not separate the clumps.
  • It's easy to install.
