Accessories

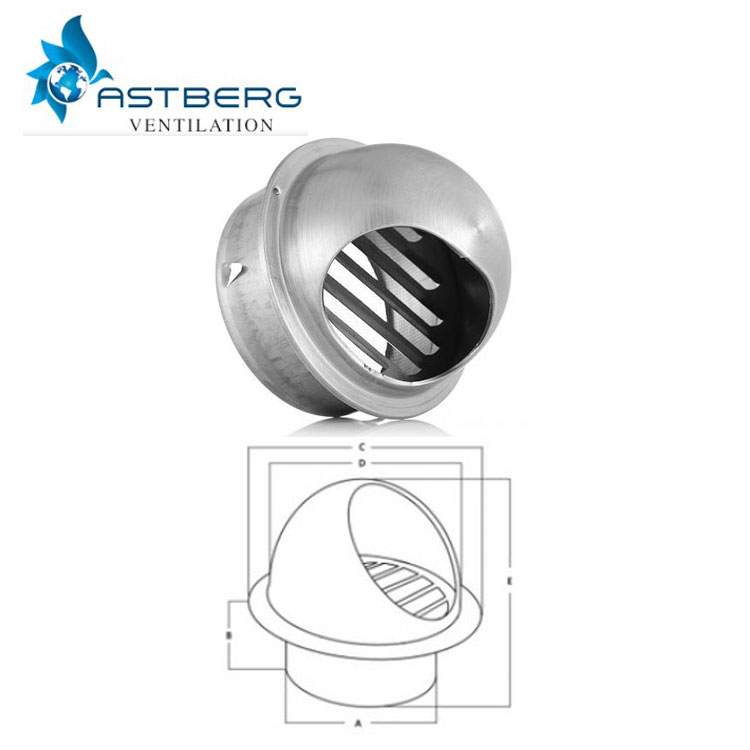

Steel Cowl

Model Size A B C D E
NSF 100 Q 100mm 98 45 147 120 113
NSF 150 Q 150mm 145 55 186 152 143
NSF 200 Q 200mm 190 68 225 184 173
  • The range is complete, the material is thick, the process is exquisite.
  • The grid layout inclined louver with aluminium alloy net can be wind-proof, rainproof and insect-proof.
  • The whole series of products are bright polished.

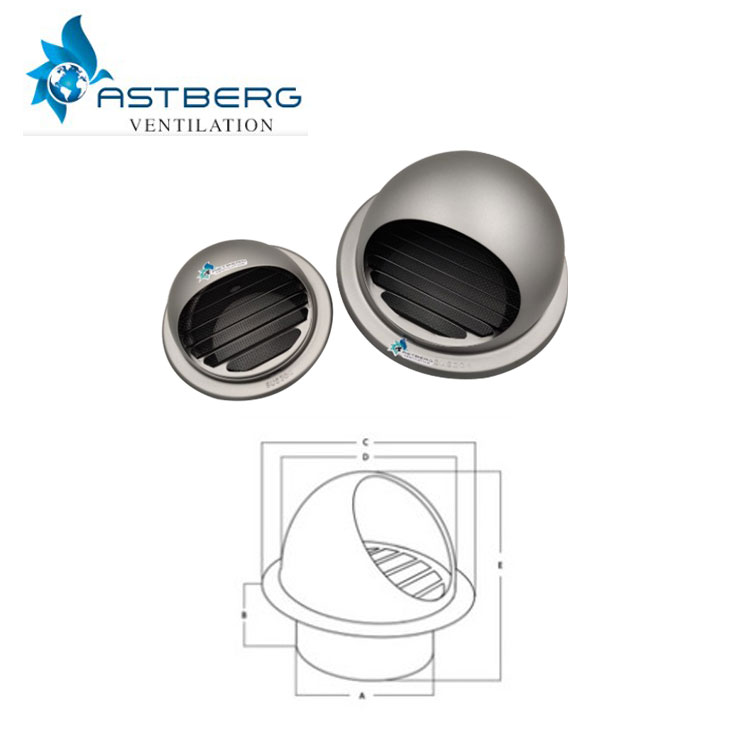

Outer Cowl Powder Coated

Model Size A B C D E
NSF 100 Q-Grey 100mm 98 45 147 120 113
NSF 150 Q-Grey 150mm 145 55 186 152 143
  • High quality with thick material and exquisite process.
  • The grid layout inclined louver with aluminium alloy net can be wind-proof, rain-proof and insect-proof.
  • The whole series of products are silver-grey coating.

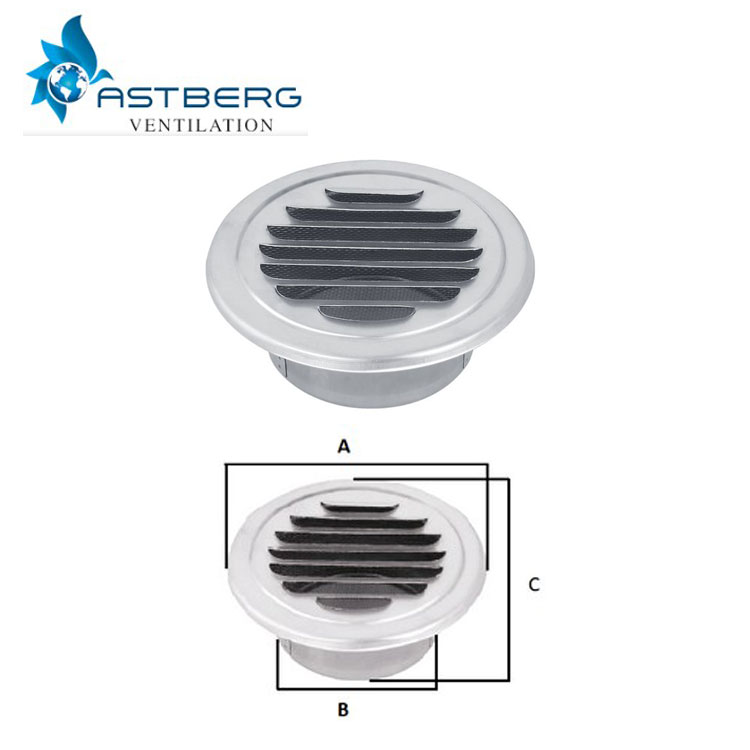

Outer Flat Grill Steel

Model Size A B C
NSF 100P 100mm 148 95 80
NSF 150P 150mm 210 145 80
  • The range is complete, the material is thick, the process is exquisite.
  • The grid layout inclined louver with aluminium alloy net can be wind-proof insect-proof.
  • The whole series of products are bright polished.

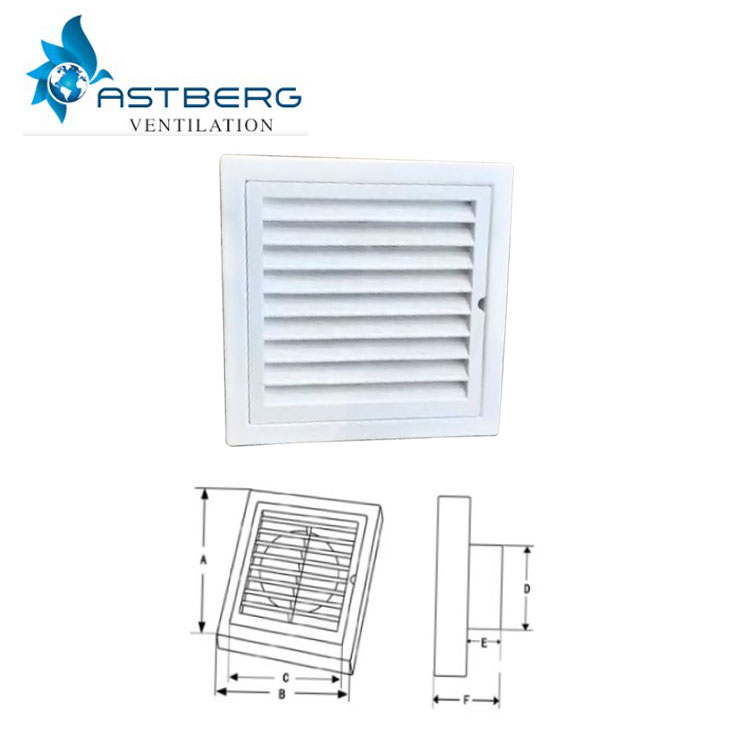

Outer Grill ABS

Model Size A B C D E F
FK 100-Y 100mm 180 180 150 97 28 45
FK 1050-Y 150mm 180 180 150 147 28 45
  • The design is reasonable, which can be removed to replace or clean the filter.
  • Suitable for air outlet of external wall or air vent of heat dissipation for equipment.

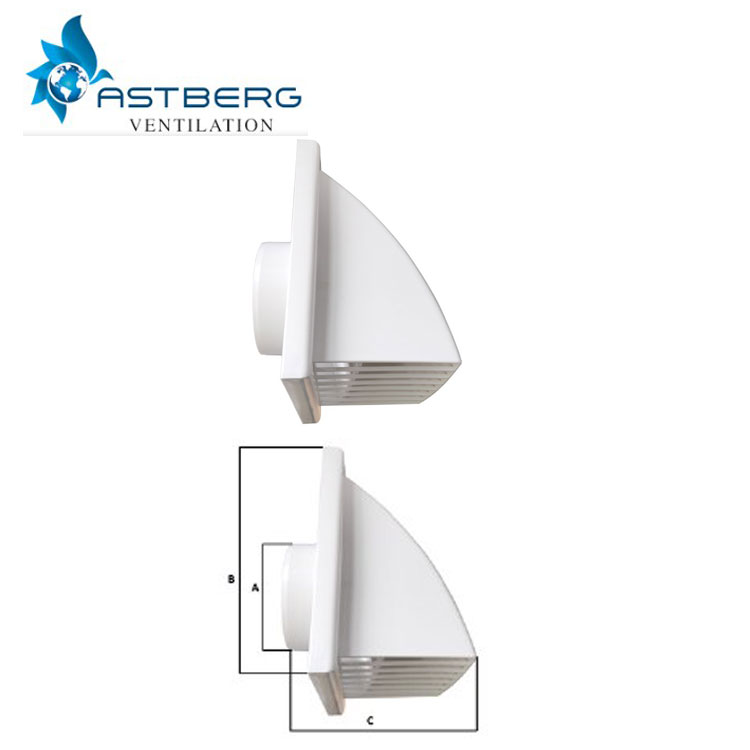

ABS Oblique Air Grill

Model Size A B C
AFM 100A 100mm 98 185 128
AFM 150A 150mm 147 185 128
  • Adopt the check valve baffle plate, the wind resistance is small, and the air duct is not blocked.
  • Using anti-aging, anti-ultraviolet materials, more durable.
  • Used exclusively for external wall exhaust.

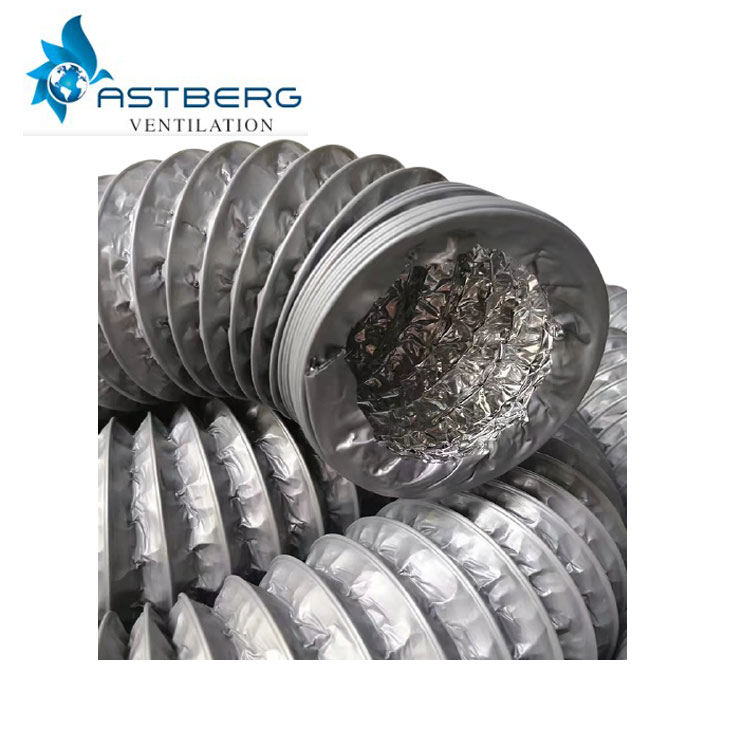

PVC Flexible Duct

Internal Diameter Package Size Expand
100MM 0.5m 10m
150MM 0.5m 10m
200MM 0.5m 5m
  • It is made of double-wall aluminium foil with additional seat, IPVC Qi, and instant burning steel wire brand.
  • The EU standard water is used, which is environmentally friendly.
  • Thick layer of grey PVC on this ducting prevents light leaks and repels heat from your light fixtures.

Product Range
