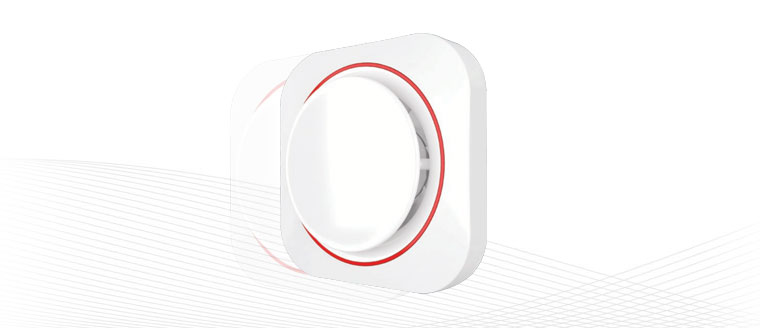

Disc 4c (Domestic Fans)
Specifications
- 100 mm diameter.
- Innovative design of the face panel, with ring available in 4 colors, allows to set the central movable part in two positions to control air flow.
- Shortened fange allows to mount the fan into the shafts limited in depth and into the ceilings.
- IP24 lngress protection rating for electrical equipment.
These fans are versatile, suitable for wall and ceiling installation in kitchens,
bathrooms, and utility rooms. They integrate easily into existing ventilation systems,
removing odors and pollutants with a low-noise motor. The advanced technology ensures
up to 40,000 hours of continuous operation while being energy efficient. For
ceiling mounting, remove the back-draught shutter.

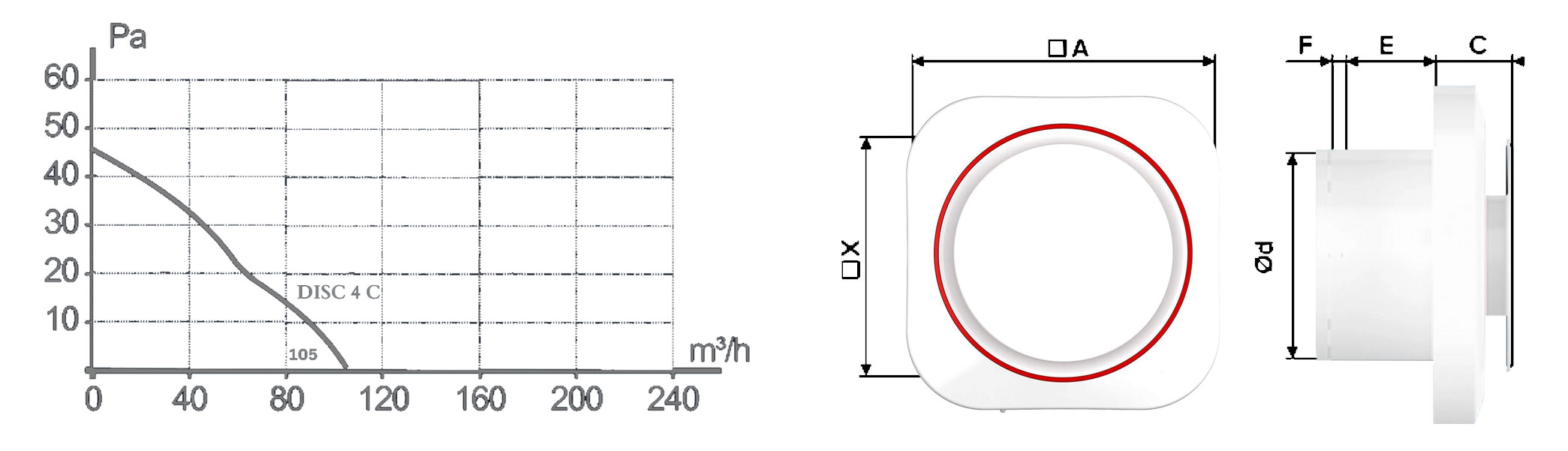

Dimensions (mm)
| Item Code |
A |
X |
E |
d |
F* |
| Disc 4C |
159 |
125 |
48 |
100 |
5 |
Dimensions (mm)
| Model |
Unit |
Disc 4C |
| Diameter |
(mm) |
100 |
| Power |
(W) |
17 |
| Capacity |
(m3/h) |
105/80 |
| Air Pressure |
(Pa) |
45/28 |
| Noise Level |
(dB) |
35 |
| Current |
(A) |
0.07 |

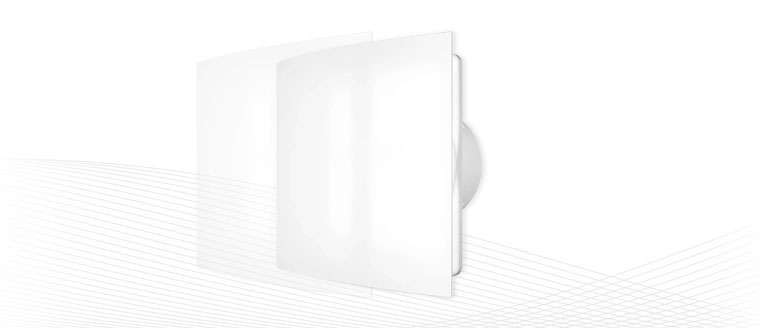

Quadro 4C (Domestic Fans)
Specifications
- Exhaust fans for wall & ceiling.
- 100 mm diameter.
- Noise less back-draught shutter with rubber stoppers.
- Ball-bearing motor with up to 40000 hours of continuous operation.
- Reduced Power Consumption.
- IP24 lngress protection rating for electrical equipment.
These fans are versatile, suitable for wall and ceiling installation in kitchens,
bathrooms, and utility rooms. They integrate easily into existing ventilation systems,
removing odors and pollutants with a low-noise motor. The advanced technology ensures
up to 40,000 hours of continuous operation while being energy efficient. For ceiling mounting, remove the back-draught shutter.

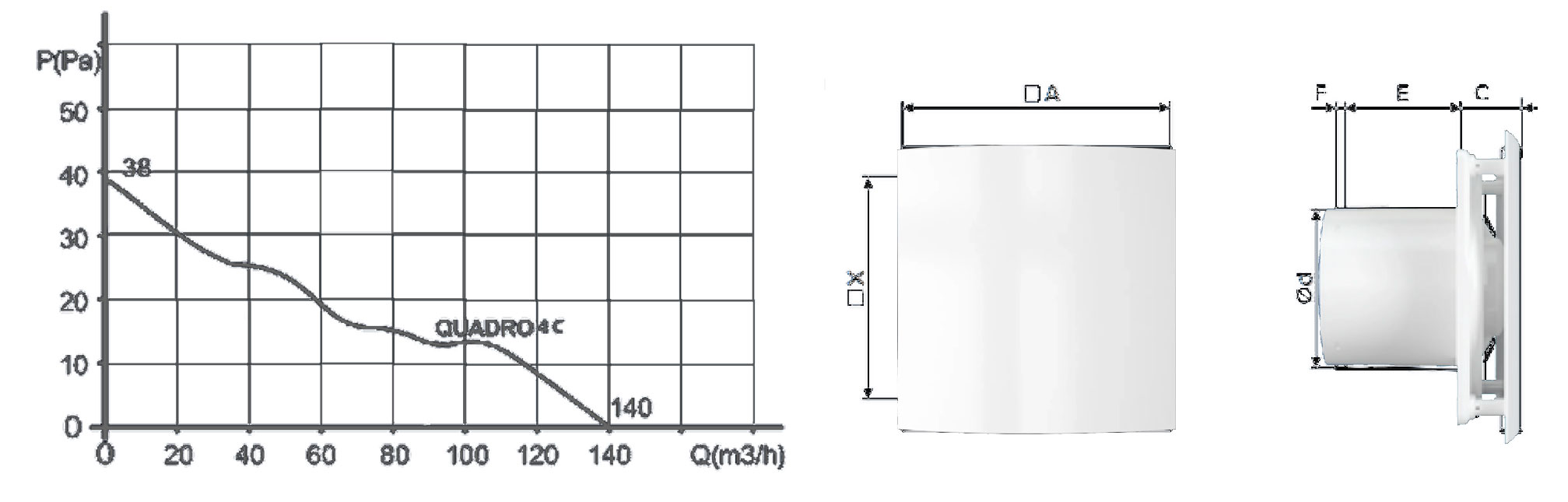

Dimensions (mm)
| Item Code |
A |
X |
E |
d |
C |
F* |
| Quadro 4C |
172 |
135 |
74 |
98 |
38 |
6 |
Dimensions (mm)
| Model |
Unit |
Quadro 4C |
| Diameter |
(mm) |
98 |
| Power |
(W) |
14 |
| Capacity |
(m3/h) |
90 |
| Air Pressure |
(Pa) |
31 |
| Noise Level |
(dB) |
35 |
| Current |
(A) |
0.06 |
