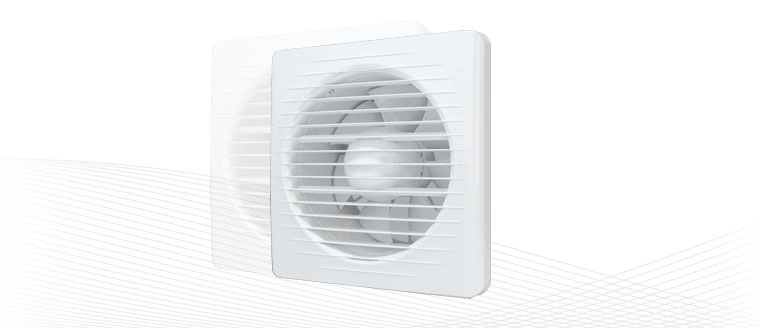

Era 6C (Domestic Fans)
Specifications
- Traditional design with straight shutters.
- 150 mm diameter.
- Wide choice of additional options.
- IP24 lngress protection rating for electrical equipment.
These fans are versatile, suitable for wall and ceiling installation in kitchens,
bathrooms, and utility rooms. They integrate easily into existing ventilation systems,
removing odors and pollutants with a low-noise motor. The advanced technology ensures
up to 40,000 hours of continuous operation while being energy efficient. For
ceiling mounting, remove the back-draught shutter.

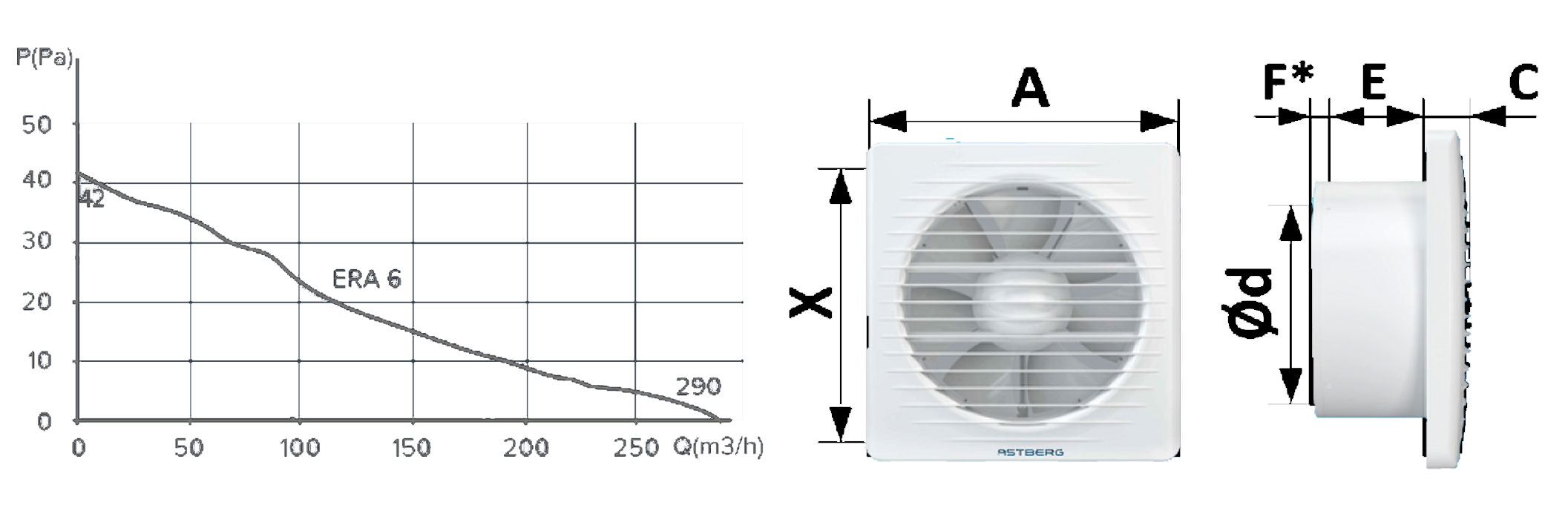

Dimensions (mm)
| Item Code |
A |
X |
E |
d |
c |
F* |
| Era 6C |
200 |
185 |
62 |
150 |
24 |
10 |
Dimensions (mm)
| Model |
Unit |
Era 6C |
| Diameter |
(mm) |
150 |
| Power |
(W) |
16 |
| Capacity |
(m3/h) |
290 |
| Air Pressure |
(Pa) |
42 |
| Noise Level |
(dB) |
38 |
| Current |
(A) |
0.07 |

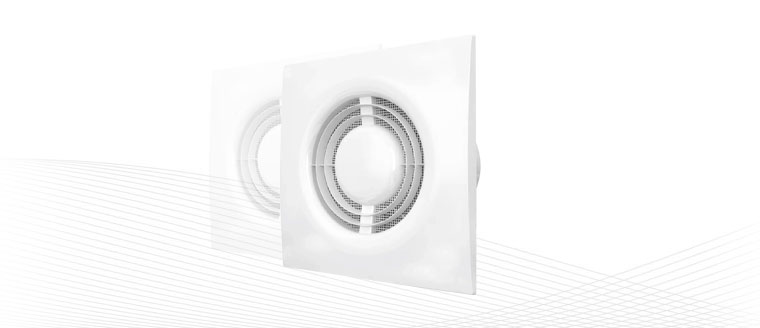

Neo 6SC (Domestic Fans)
Specifications
- 150 mm diameter.
- Sleeve-Bearing motor doesn't require extra maintenance.
- Radial concentric circles from the design of the face panel.
- IP24 lngress protection rating for electrical equipment.
These fans are versatile, suitable for wall and ceiling installation in kitchens,
bathrooms, and utility rooms. They integrate easily into existing ventilation systems,
removing odors and pollutants with a low-noise motor. The advanced technology ensures
up to 40,000 hours of continuous operation while being energy efficient. For
ceiling mounting, remove the back-draught shutter.

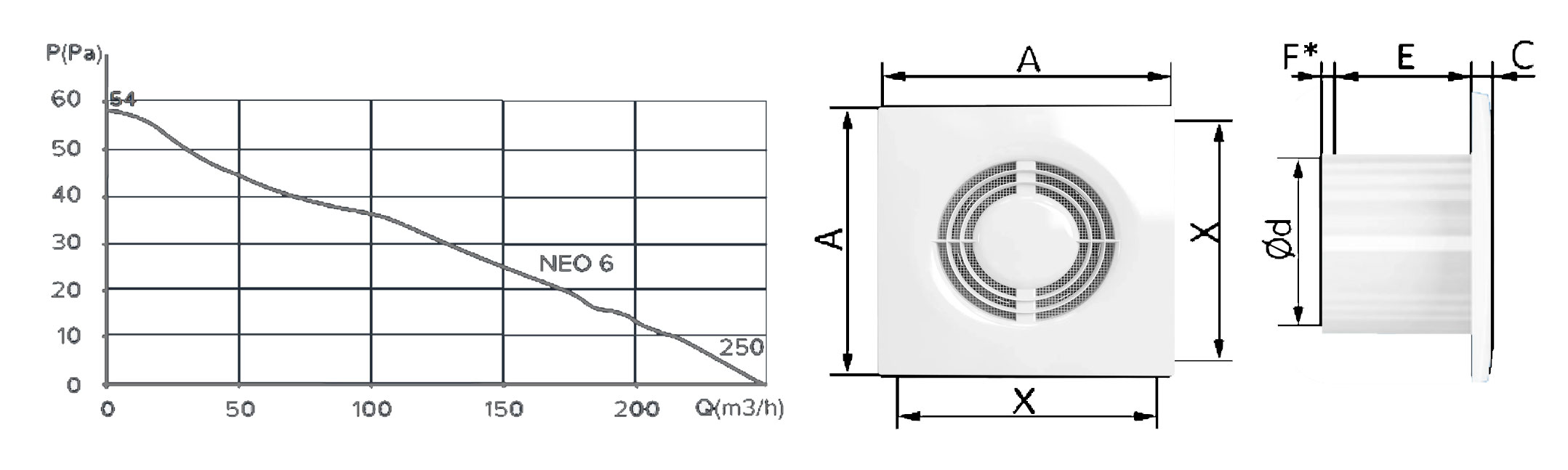

Dimensions (mm)
| Item Code |
A |
X |
d |
E |
C |
F* |
| Neo 6SC |
205 |
187 |
150 |
86 |
11 |
20 |
Dimensions (mm)
| Model |
Unit |
Neo 6SC |
| Diameter |
(mm) |
150 |
| Power |
(W) |
16 |
| Capacity |
(m3/h) |
250 |
| Air Pressure |
(Pa) |
54 |
| Noise Level |
(dB) |
38 |
| Current |
(A) |
0.07 |
