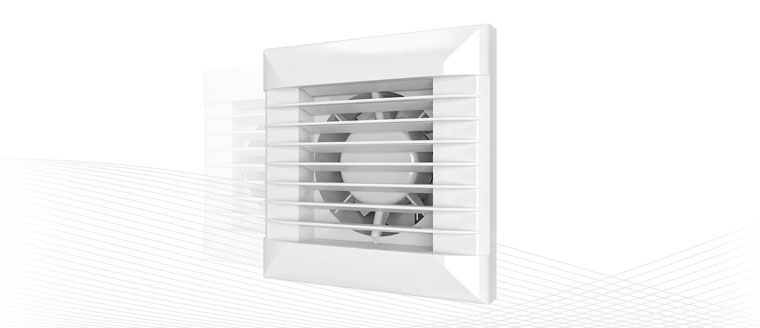

Eura 4A/6A (Domestic Fans)
Specifications
- Exhaust fan for wall application.
- 150 mm diameter.
- Fans are equipped with automatic shuters independently opening after actuation of device. The shutters block air flow preventing back draft.
- IP24 lngress protection rating for electrical equipment.
These fans are versatile, suitable for wall and ceiling installation in kitchens,
bathrooms, and utility rooms. They integrate easily into existing ventilation systems,
removing odors and pollutants with a low-noise motor. The advanced technology ensures
up to 40,000 hours of continuous operation while being energy efficient. For
ceiling mounting, remove the back-draught shutter.

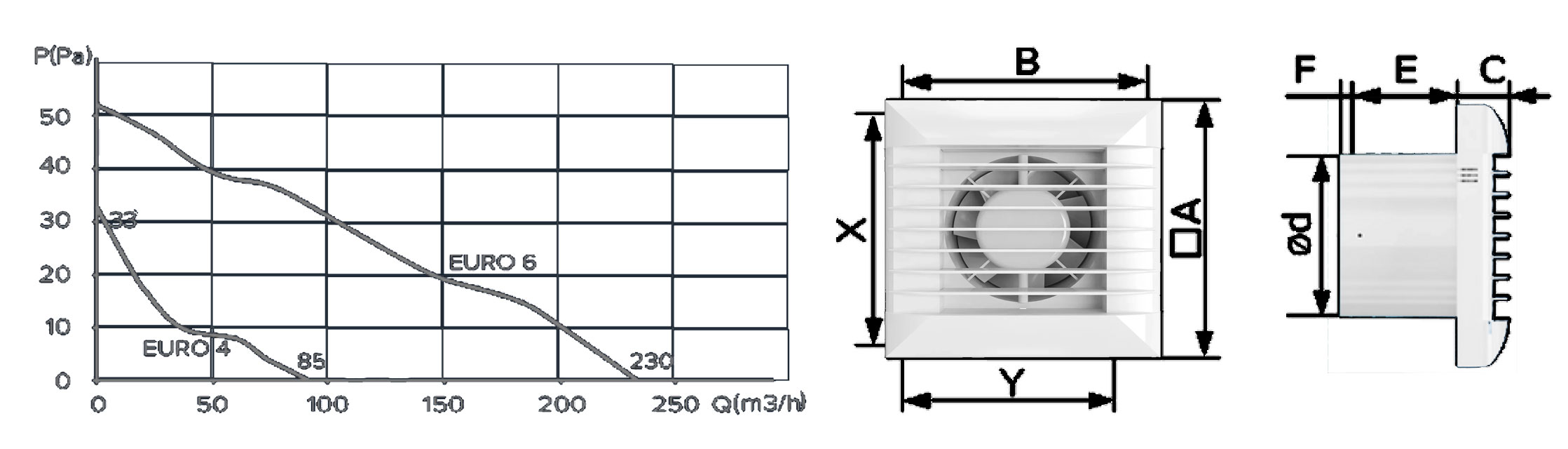

Dimensions (mm)
| Item Code |
A |
B |
X |
Y |
C |
E |
d |
| Euro 4A |
160 |
140 |
140 |
120 |
30 |
62 |
100 |
| Euro 6A |
213.2 |
187 |
187 |
163.5 |
30 |
70 |
150 |
Dimensions (mm)
| Model |
Unit |
Euro 4A |
Euro 6A |
| Diameter |
(mm) |
100 |
150 |
| Power |
(W) |
14 |
16 |
| Capacity |
(m3/h) |
85 |
230 |
| Air Pressure |
(Pa) |
33 |
52 |
| Noise Level |
(dB) |
35 |
38 |
| Current |
(A) |
0.06 |
0.07 |

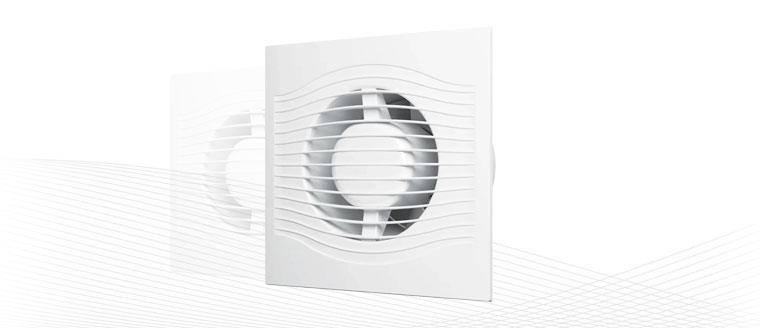

Slim 6C (Domestic Fans)
Specifications
- Exhaust fan for wall application.
- 150 mm diameter.
- Noise less ball-bearing motor with up to 40000 hours of continuous operation.
- Extra thin face panel
- IP24 lngress protection rating for electrical equipment.
These fans are versatile, suitable for wall and ceiling installation in kitchens,
bathrooms, and utility rooms. They integrate easily into existing ventilation systems,
removing odors and pollutants with a low-noise motor. The advanced technology ensures
up to 40,000 hours of continuous operation while being energy efficient. For
ceiling mounting, remove the back-draught shutter.

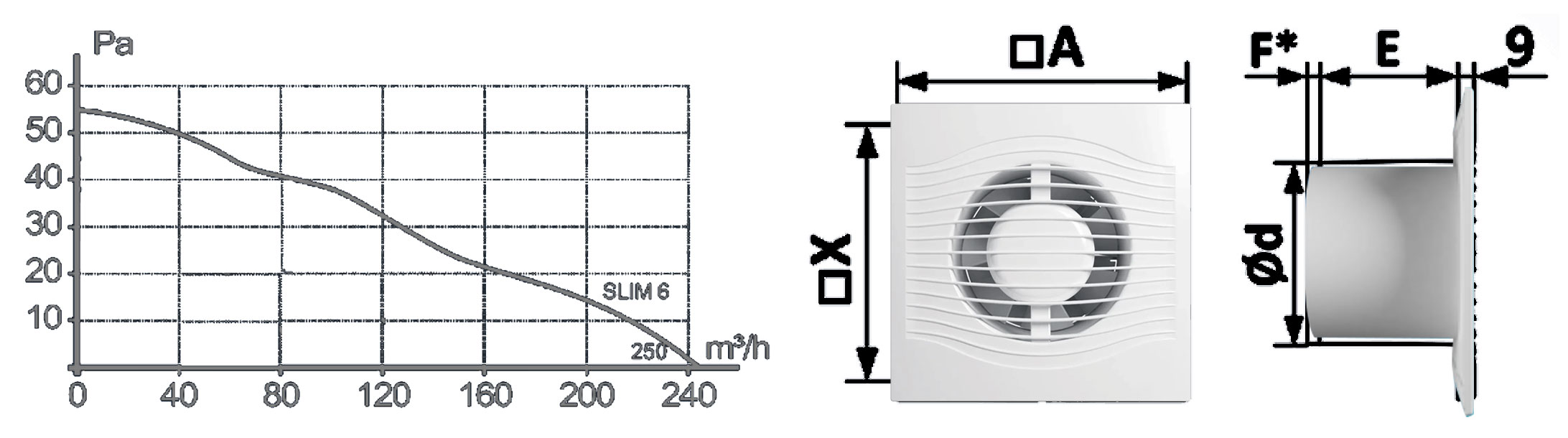

Dimensions (mm)
| Item Code |
A |
X |
E |
d |
F |
| Slim 6C |
205 |
187 |
86 |
150 |
10 |
Dimensions (mm)
| Model |
Unit |
Slim 6C |
| Diameter |
(mm) |
150 |
| Power |
(W) |
10 |
| Capacity |
(m3/h) |
250 |
| Air Pressure |
(Pa) |
54 |
| Noise Level |
(dB) |
33 |
| Current |
(A) |
0.05 |
