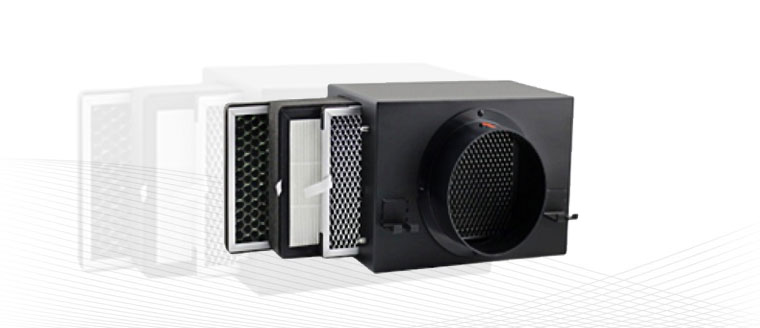

Filter Box

Features

  • The box body adopts the unique sealing welding design, the surface is electrostatic spraying.

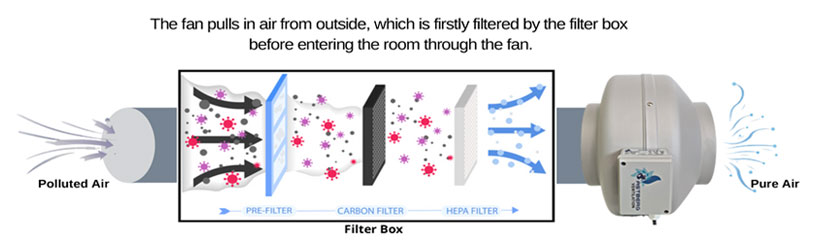

  • The quadruple filtration (primary effect, high efficiency, activated carbon, silver ion) can be effectively filtering.
  • PM2.5 and formaldehyde etc. other harmful substances.
  • The humanized design does not request to use any tools to replace the filter core.
Model Connect Size Filter Size Air Flow Box Size
AL100 100MM 305 x 180mm 80-200m3h 320 x 320 x 200mm
AL150 150MM 305 x 180mm 200-500m3h 320 x 320 x 200mm
AL200 200MM 425 x 275mm 500-800m3h 470 x 430 x 300mm

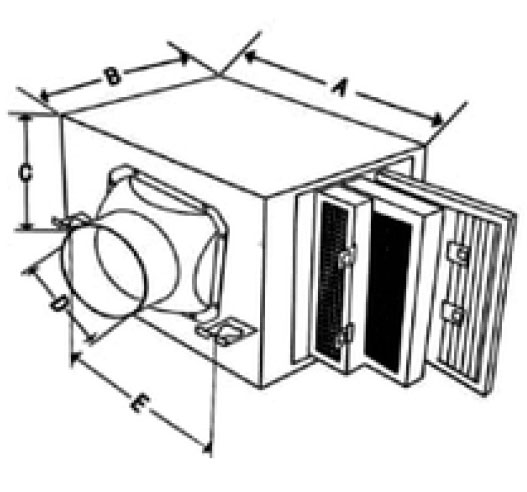

Dimension Table (mm)

Model Size A B C D E
AL100 100MM 300 200 200 95 245
AL150 150MM 300 200 200 95 245
AL200 200MM 430 300 300 195 350
