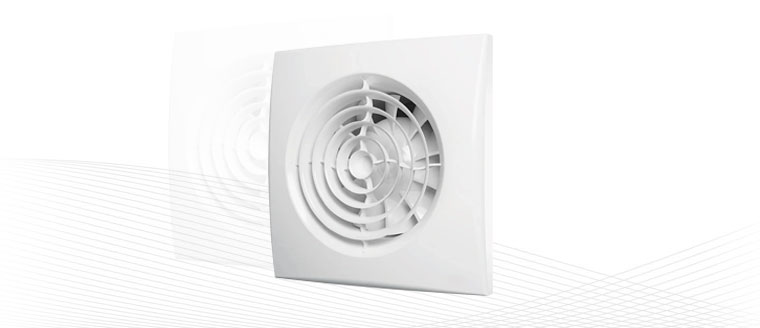

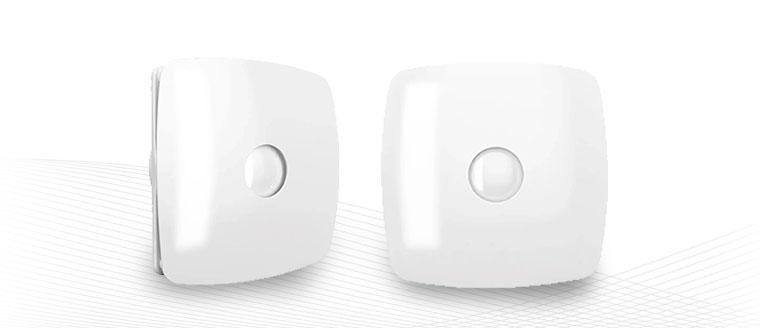

These fans are versatile, suitable for wall and ceiling installation in kitchens, bathrooms, and utility rooms. They integrate easily into existing ventilation systems, removing odors and pollutants with a low-noise motor. The advanced technology ensures up to 40,000 hours of continuous operation while being energy efficient. For ceiling mounting, remove the back-draught shutter.

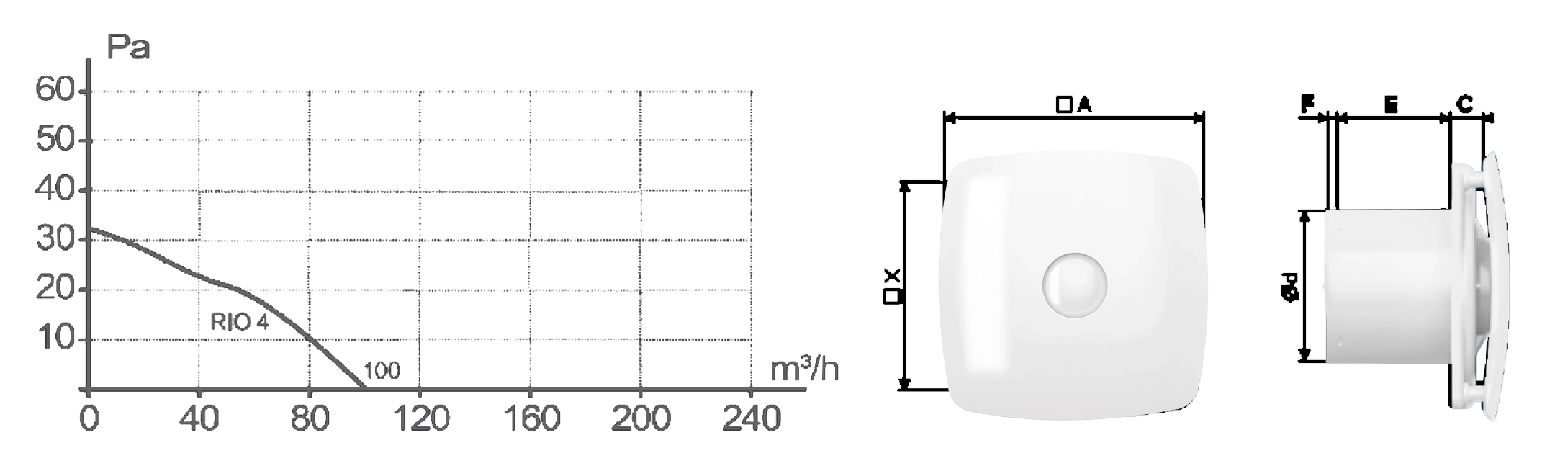

| Item Code | A | X | E | C | d | F* |
|---|---|---|---|---|---|---|
| Rio 4C | 170 | 135 | 74 | 38 | 98 | 6 |
| Model | Unit | Rio 4C |
|---|---|---|
| Diameter | (mm) | 98 |
| Power | (W) | 14 |
| Capacity | (m3/h) | 100 |
| Air Pressure | (Pa) | 32 |
| Noise Level | (dB) | 32 |
| Current | (A) | 0.06 |

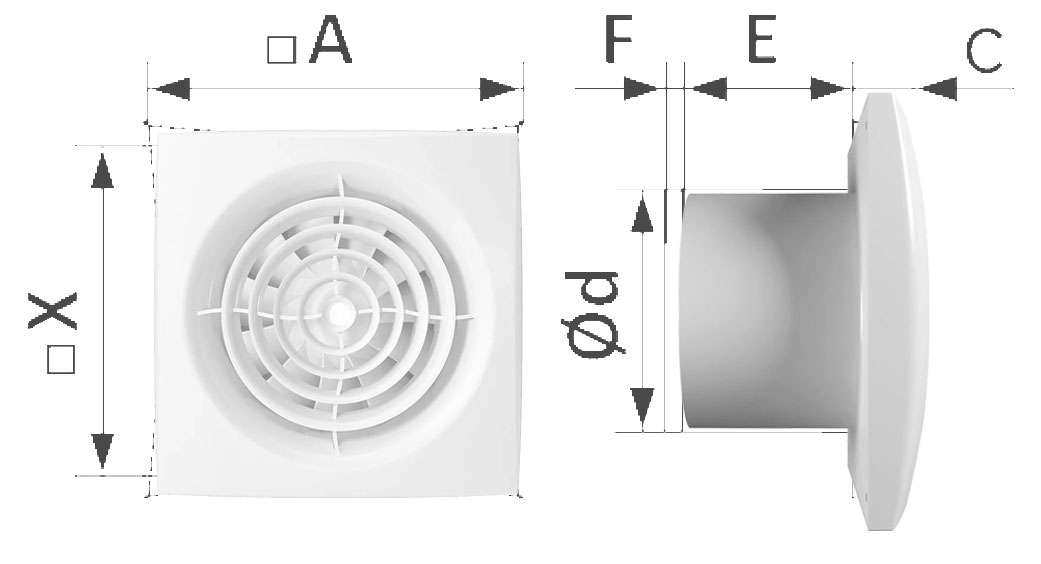

| Item Code | A | X | E | C | d | F* |
|---|---|---|---|---|---|---|
| Aura 6C-03 | 205 | 183.5 | 108 | 28 | 149.5 | - |

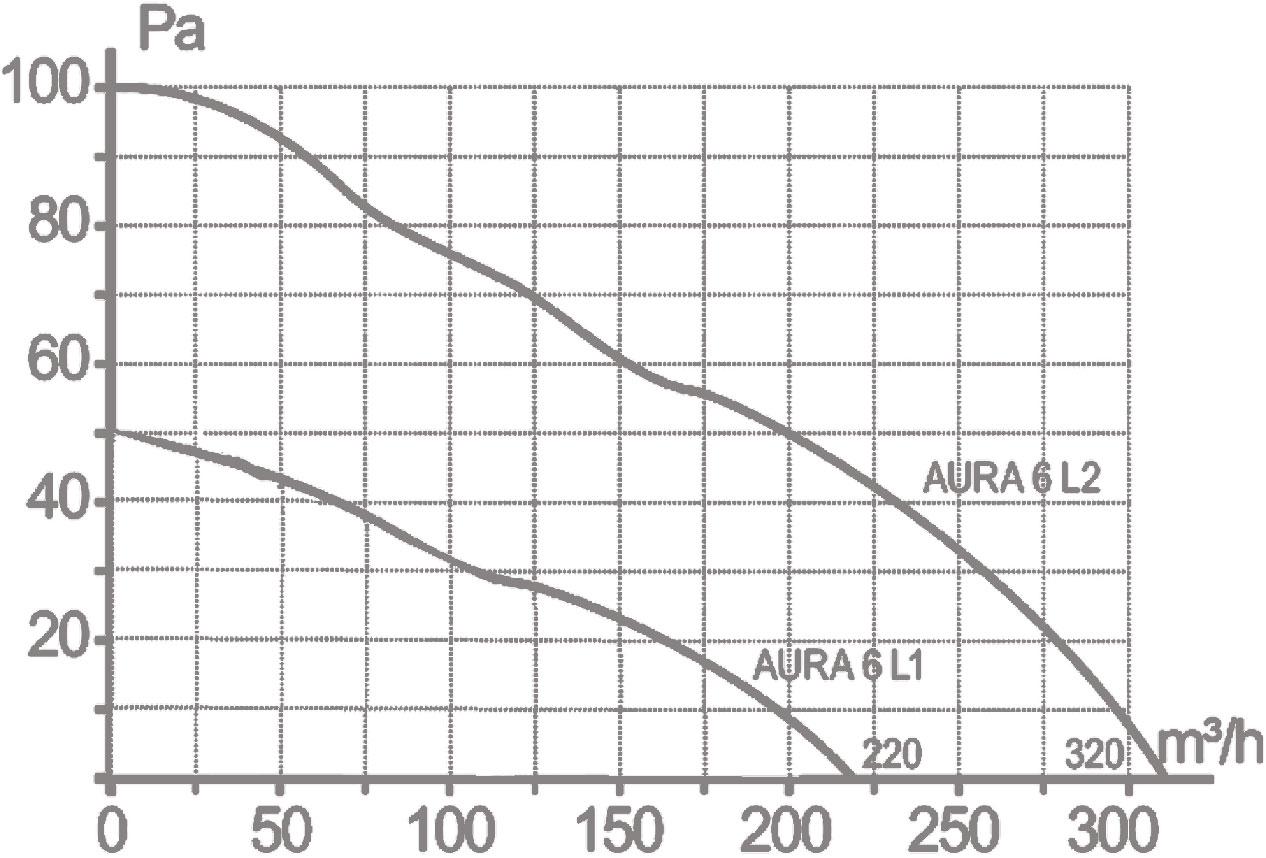

| Model | Unit | Aura 6C-03 |
|---|---|---|
| Diameter | (mm) | 149.5 |
| Power | (W) | 17/20 |
| Capacity | (m3/h) | 225/320 |
| Air Pressure | (Pa) | 50/95 |
| Noise Level | (dB) | 28/33 |
| Current | (A) | 0.08/0.09 |
