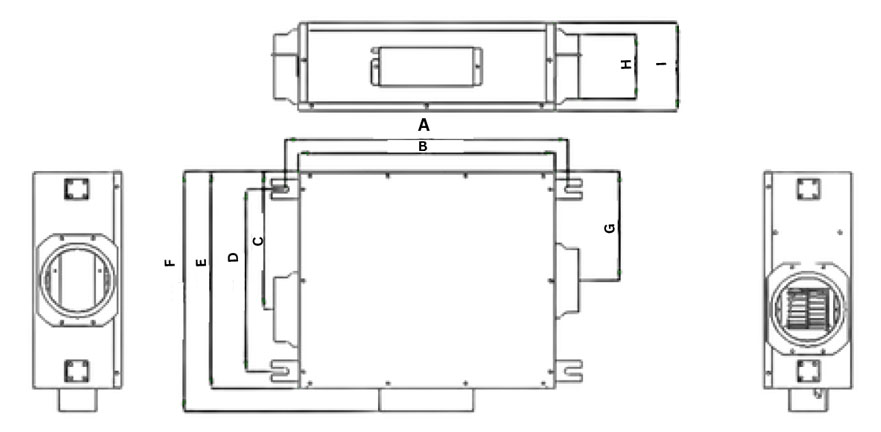

| Model | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| ASF 25 | 418 | 380 | 205 | 270 | 320 | 355 | 160 | 100 | 130 |

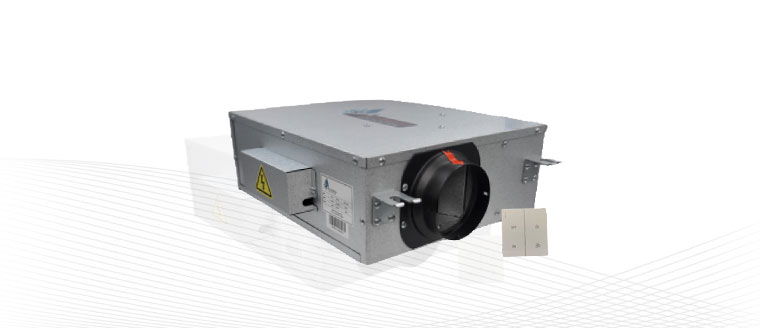

| Model | Unit | ASF 25 |
|---|---|---|
| Voltage | (V/Hz) | 220 - 230/50 |
| Rated Power | (W) | 35 |

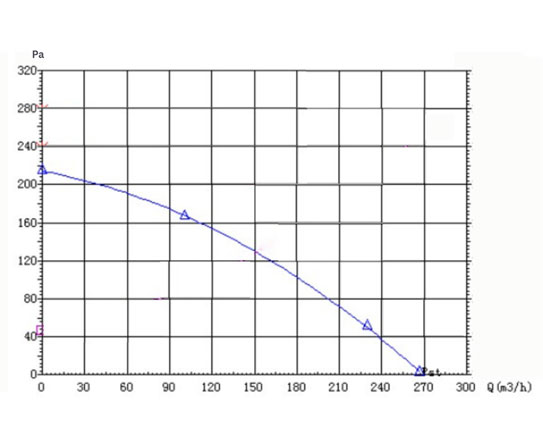

| Airflow | (m3/h) | 250 |
| Static Pressure | (Pa) | 200 |
| Noise | (dB) | 33 |
| Weight | (kg) | 7 |
| Diameter of Vent | (mm) | 100 |
| Machine Size | (mm) | 320 X 380 X 130 |
